Exploded View With Torque Specifications

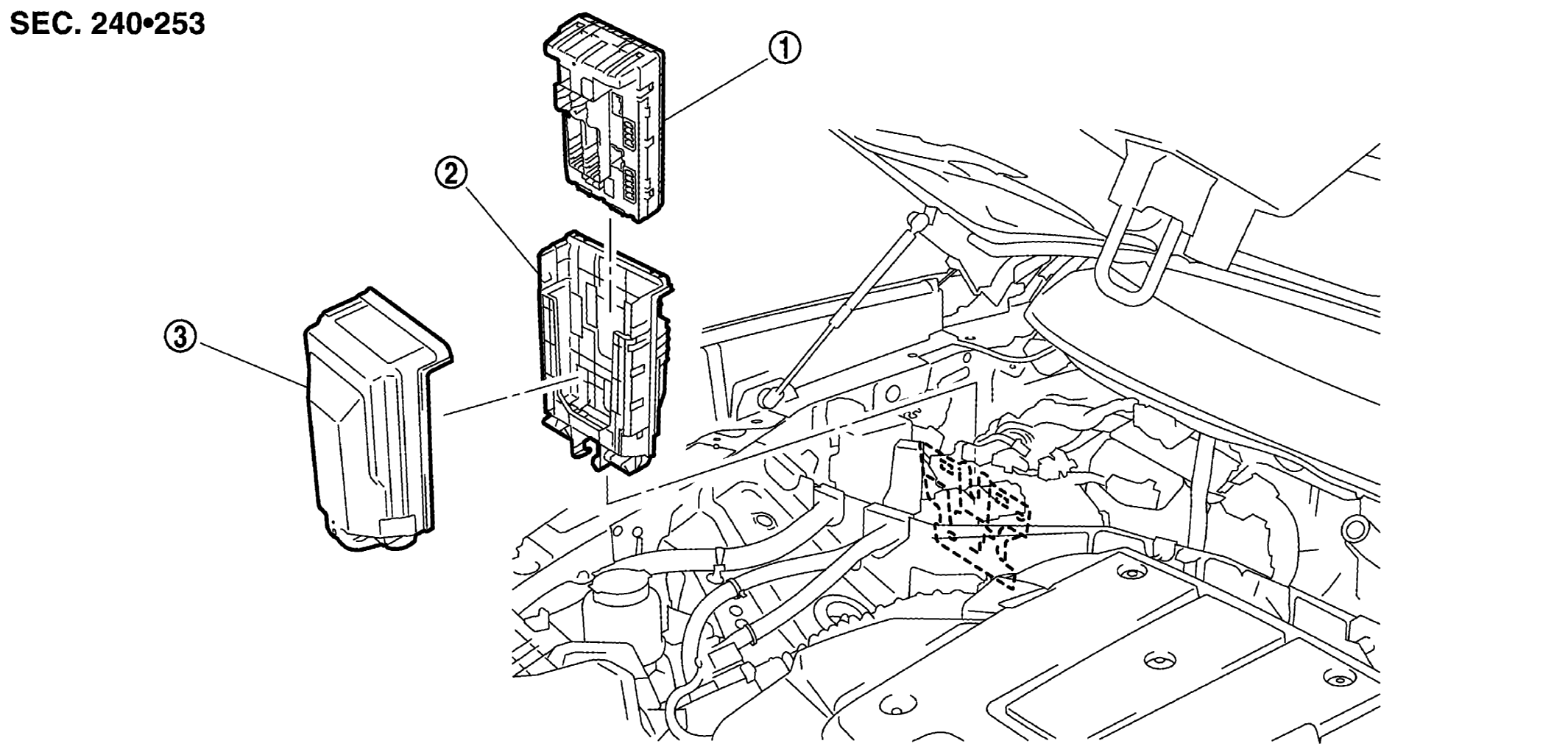

GNSJPMIA1086ZZ-086Courtesy of NISSAN NORTH AMERICA, INC.
1. IPDM E/R 2. IPDM E/R Cover B 3. IPDM E/R Cover A
