Component Location

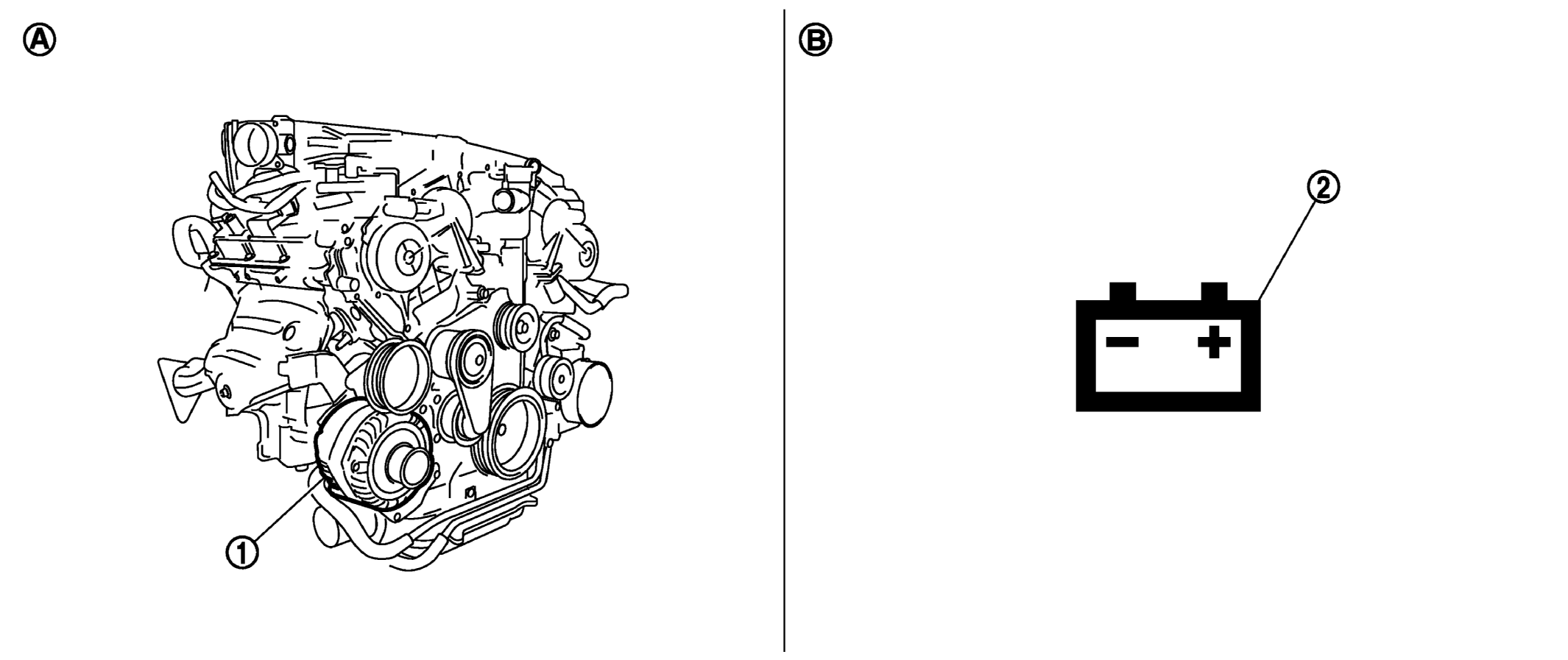

GNSJSMIA0054ZZ-054Courtesy of NISSAN NORTH AMERICA, INC.
1. Alternator 2. Charge warning lamp
A. Cylinder block (bank 1) side B. Combination Meter
