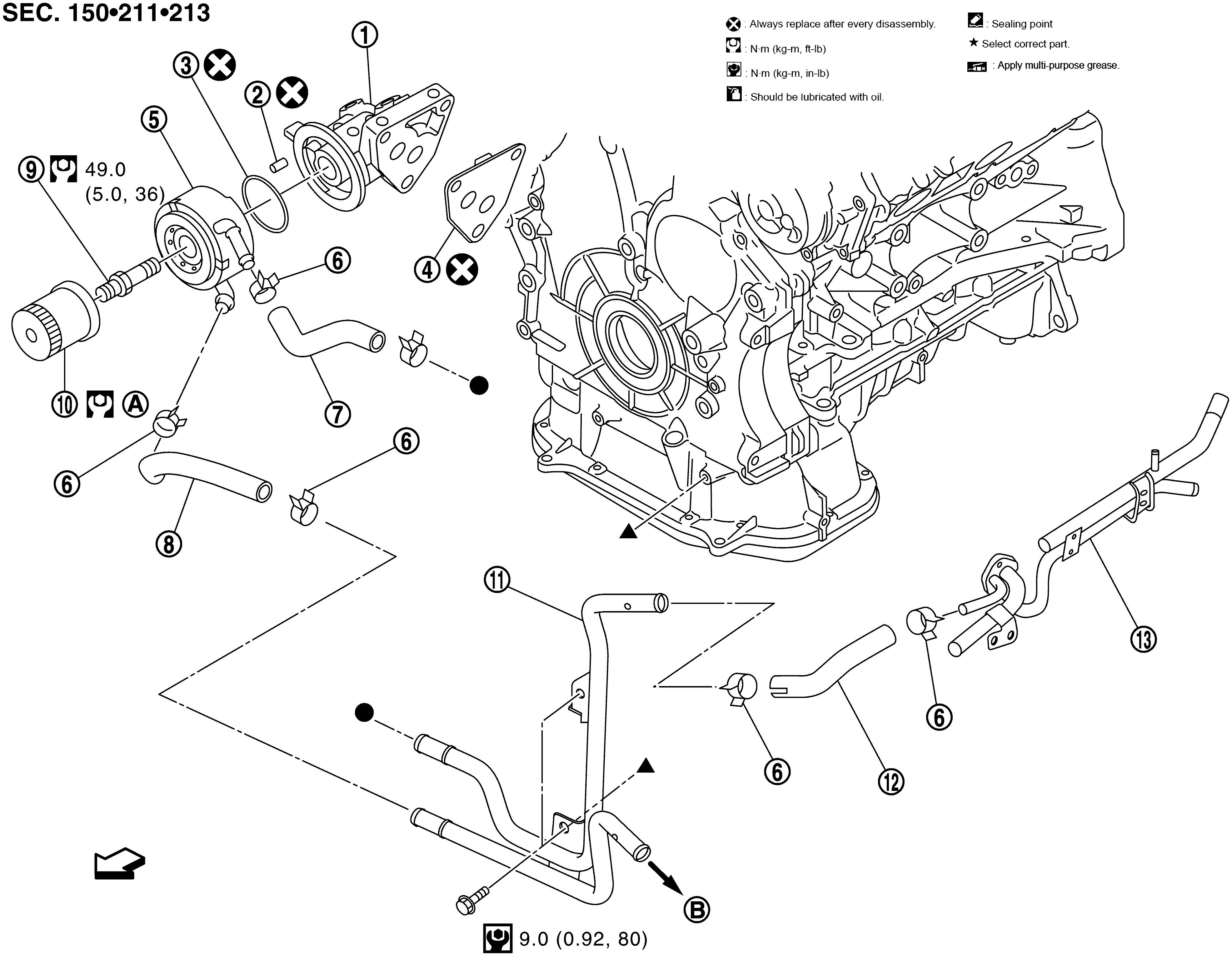

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Oil filter bracket	Relief valve	O-ring
	Gasket	Oil cooler	Clamp
	Water hose	Water hose	Connecting bolt
	Oil filter	Water pipe	Water hose
	Heater pipe
	Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION	To A/T fluid warmer
	: Engine front
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
	: Always replace after every disassembly.
, : Indicates that the parts is connected at points with same symbol in actual vehicle.

CAUTION:

Do not reuse O-rings.
