For VR30DDTT Engine Models

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

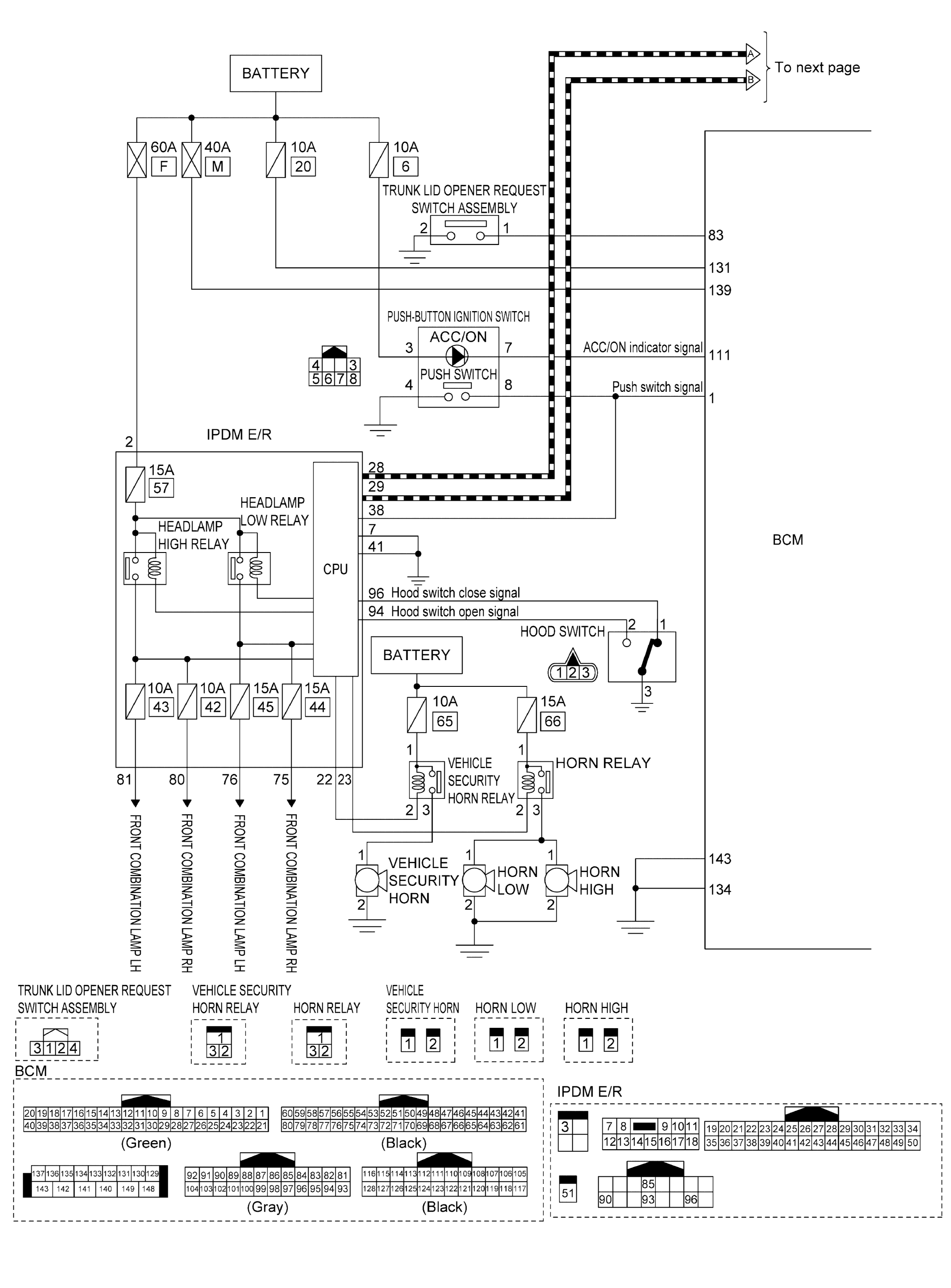

GNSJMKIB6358GB-358Courtesy of NISSAN NORTH AMERICA, INC.

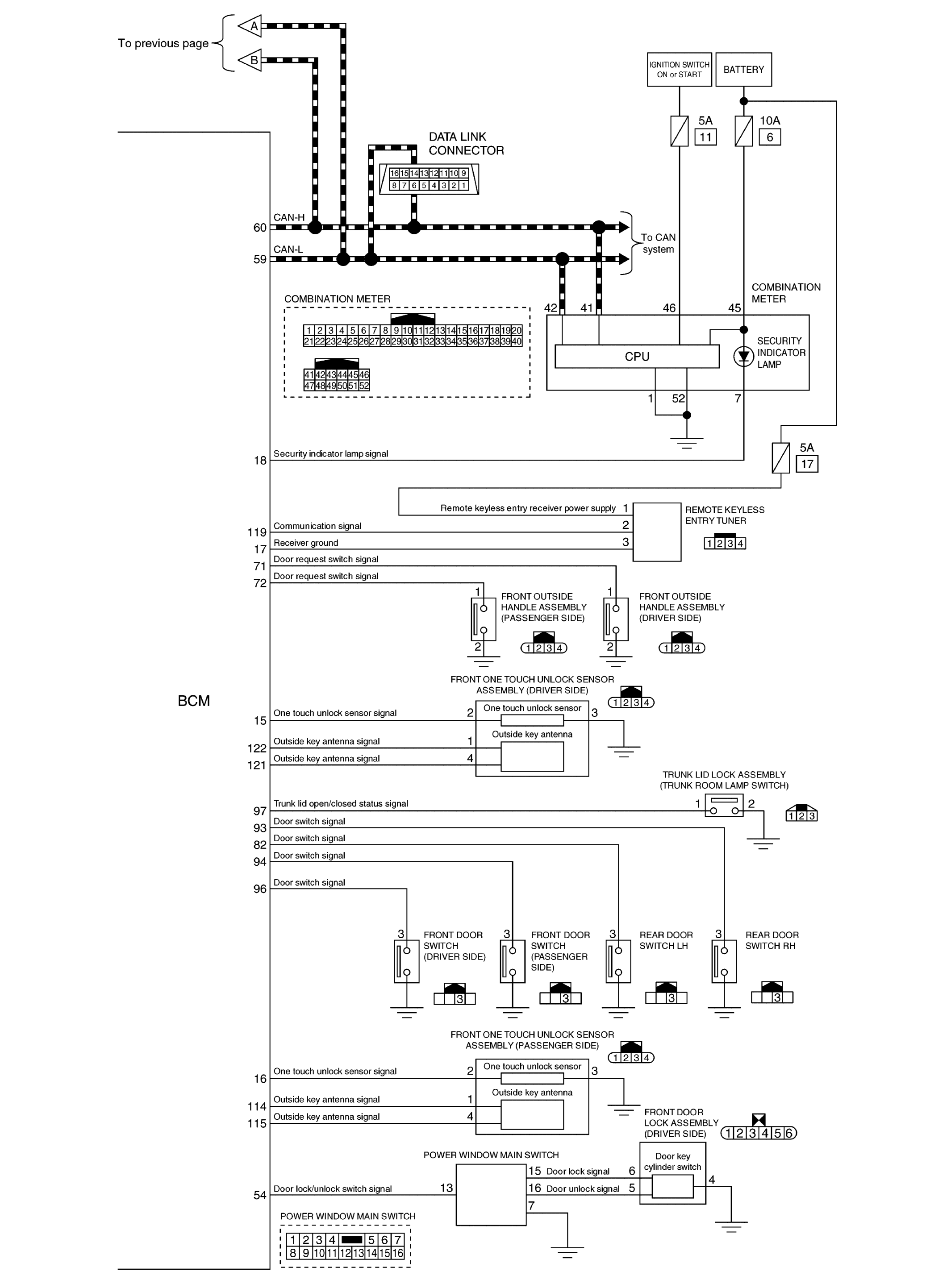

G09159533Courtesy of NISSAN NORTH AMERICA, INC.
