Exploded View

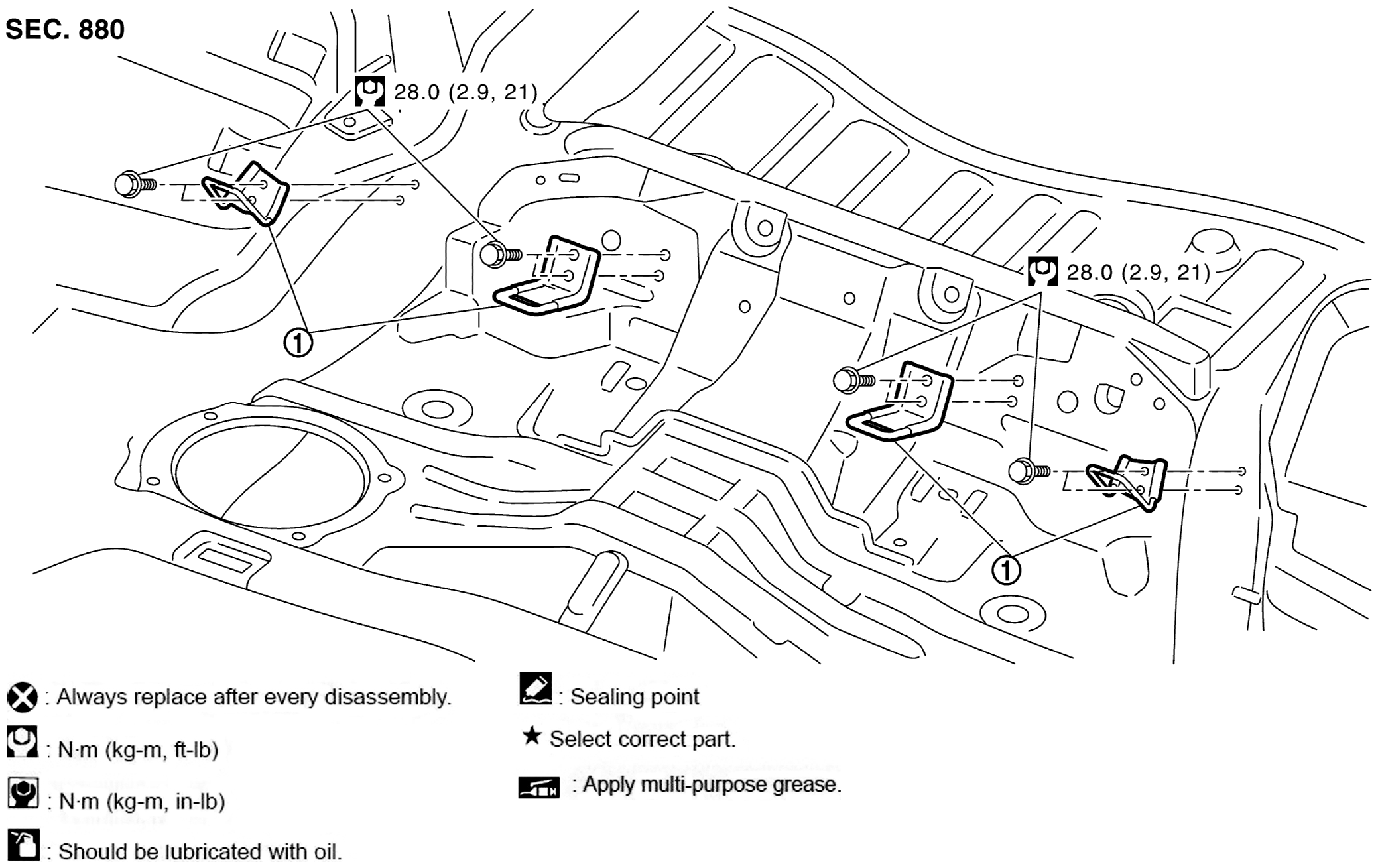

Fig 1: Latch System For Children With Torque Specifications
GNSJSHIA0069GB-069Courtesy of NISSAN NORTH AMERICA, INC.
1. LATCH System
BOLT : N•m (kg - m, ft - lb)
