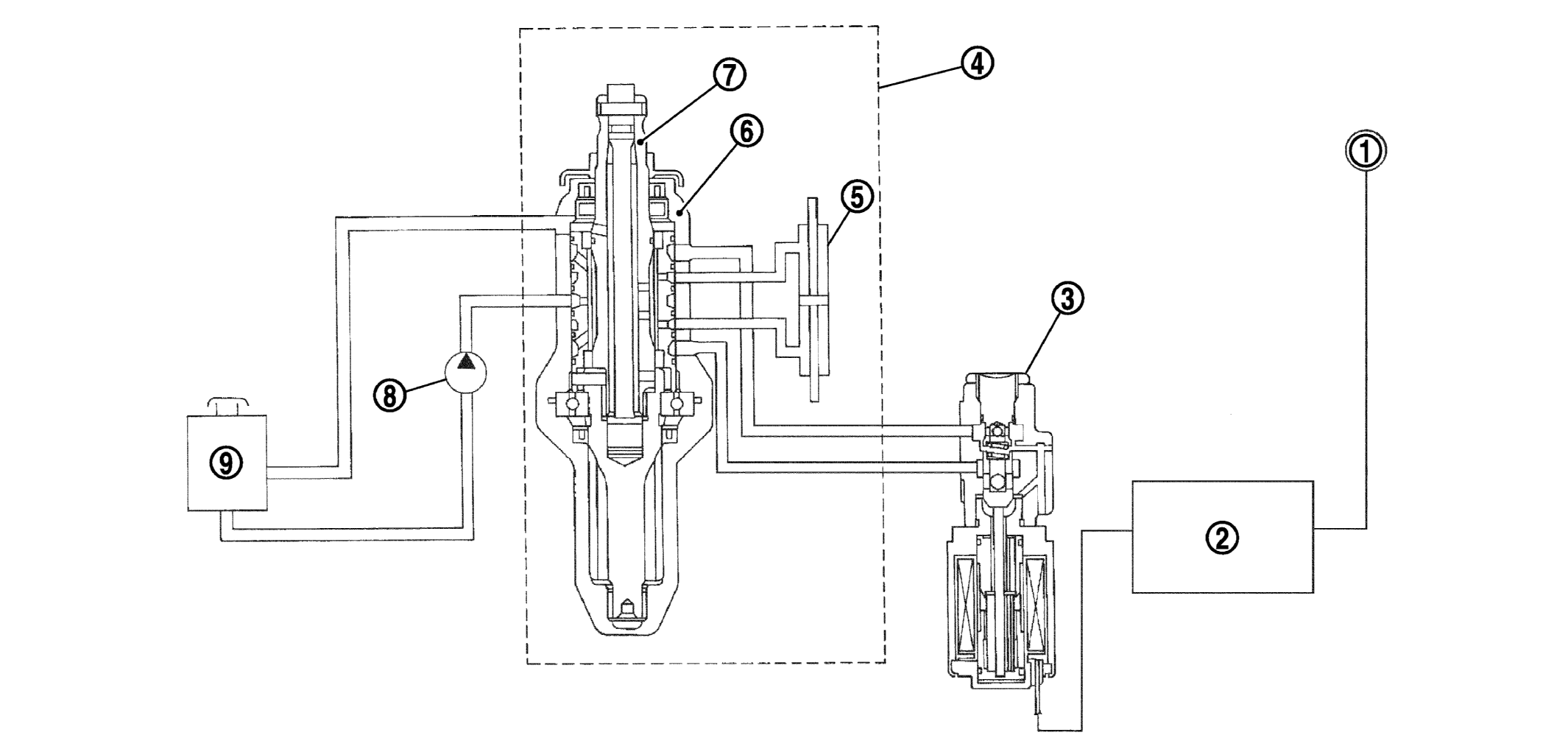

Cross-Sectional View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Unified Meter And A/C Amp.	2.	Power Steering Control Unit	3.	Power Steering Solenoid Valve
4.	Steering Gear Assembly	5.	Gear Housing Assembly	6.	Gear Sub-Assembly
7.	Pinion	8.	Power Steering Oil Pump	9.	Reservoir Tank
