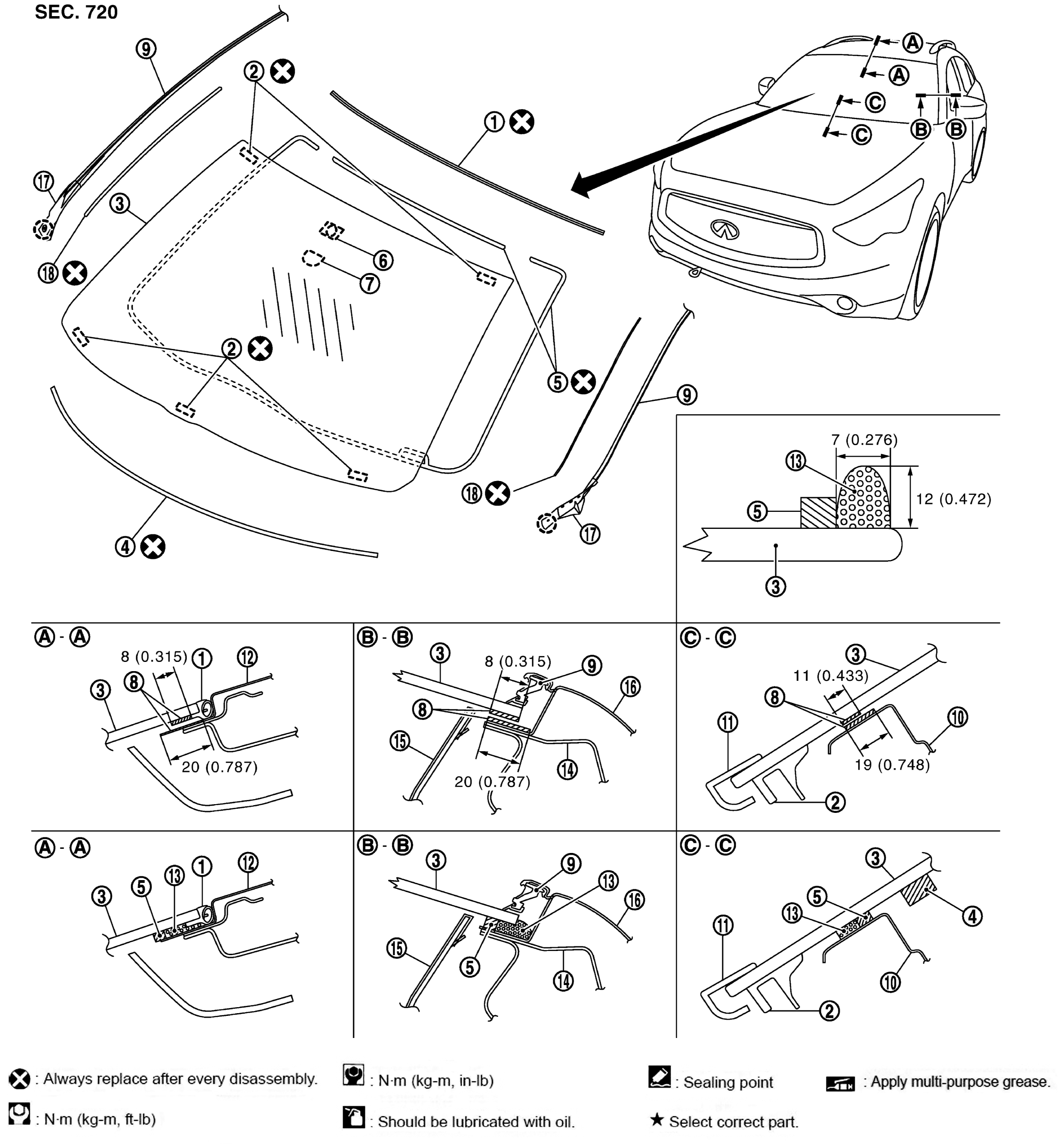

Exploded View With Torque Specifications
| 1. | Windshield Molding | 2. | Clip | 3. | Windshield Glass |
| 4. | Insulator | 5. | Dam Sealant Rubber (Upper, Lower) | 6. | Rain Sensor Bracket |
| 7. | Mirror Base | 8. | Primer | 9. | Roof Side Molding |
| 10. | Dash Upper Cross Member | 11. | Cowl Top Cover | 12. | Roof Panel |
| 13. | Adhesive | 14. | Front Pillar Outer Upper | 15. | Front Pillar Garnish |
| 16. | Body Side Outer | 17. | Front Fender Cover | 18. | Roof Side Molding Fastener |
| : Clip | |||||
| Unit | : mm (in) | ||||
| : Always replace after every disassembly. | |||||
