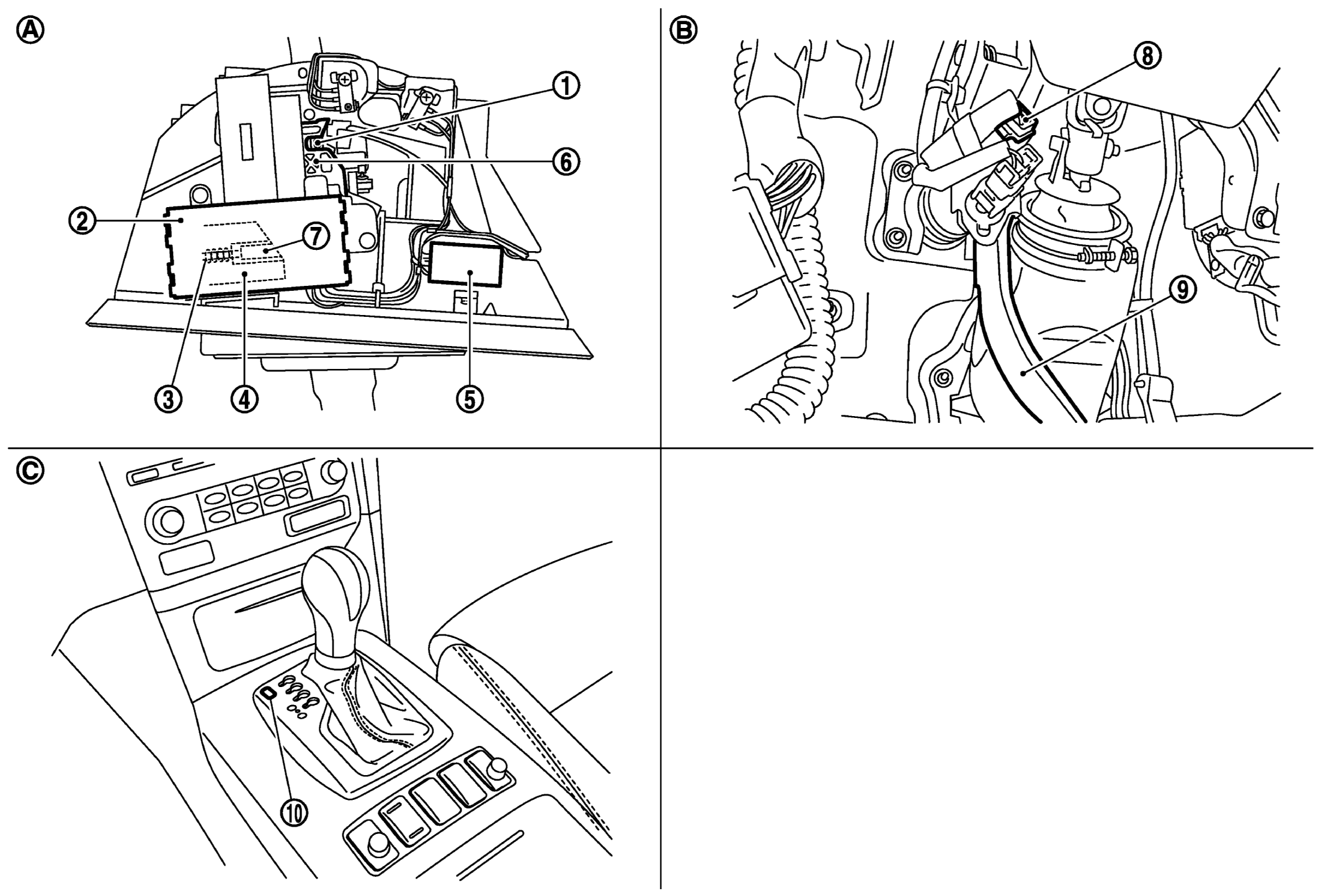

Component Location
| 1. | Position Pin | 2. | Shift Lock Unit | 3. | Shift Lock Solenoid |
| 4. | Slider A | 5. | A/T Shift Selector Connector | 6. | Lock Plate |
| 7. | Slider B | 8. | Stop Lamp Switch | 9. | Brake Pedal |
| 10. | Shift Lock Cover * | ||||
| A. | A/T Shift Selector Assembly | B. | Brake Pedal, Upper | C. | Center Console |
*: Shift lock release button becomes operative by removing shift lock cover.
