Switch Name And Function

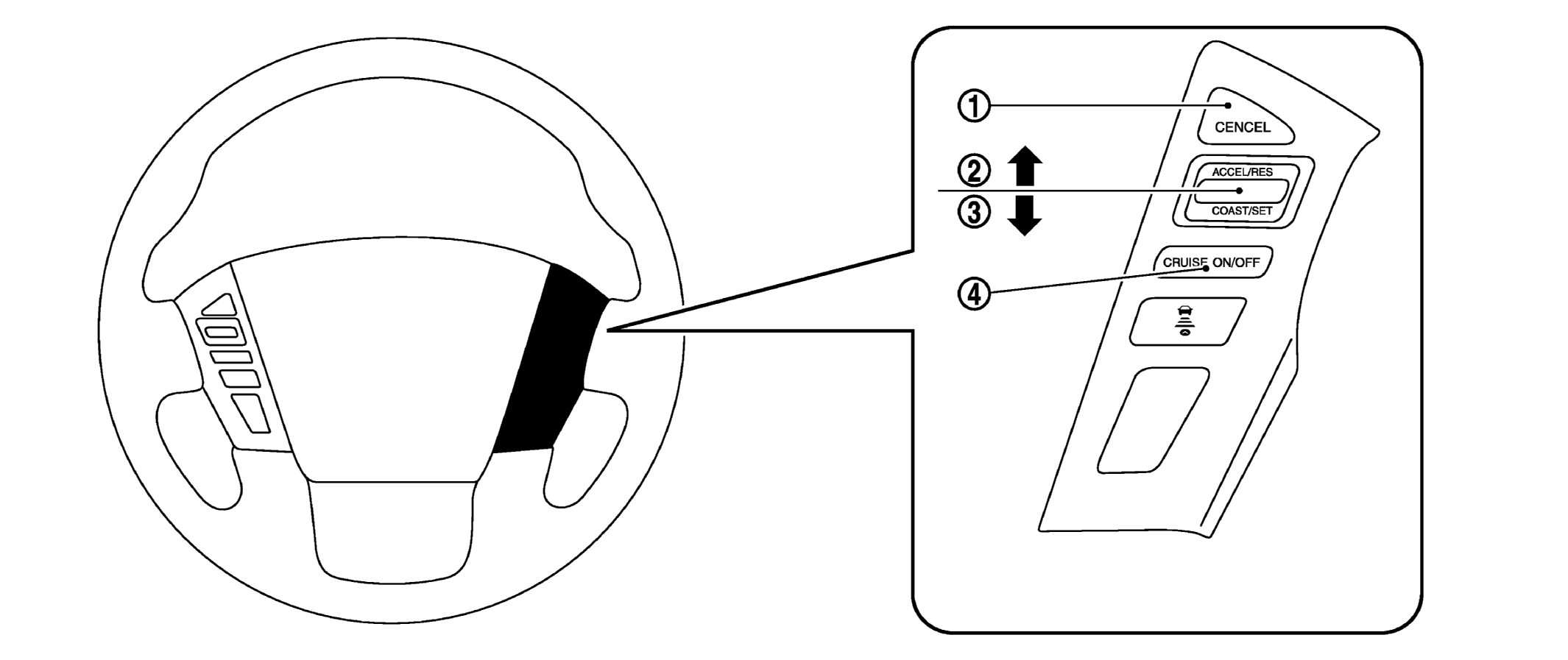

G07024219Courtesy of NISSAN NORTH AMERICA, INC.
No. Description Function
WHITE-1 CANCEL switch Deactivates system without erasing set speed
WHITE-2 RESUME/ACCELERATE switch Resumes set speed or increases speed incrementally
WHITE-3 SET/COAST switch Sets desired cruise speed or reduces speed incrementally
WHITE-4 MAIN switch Master switch to activate the system (Press for more than 1.5 seconds)
