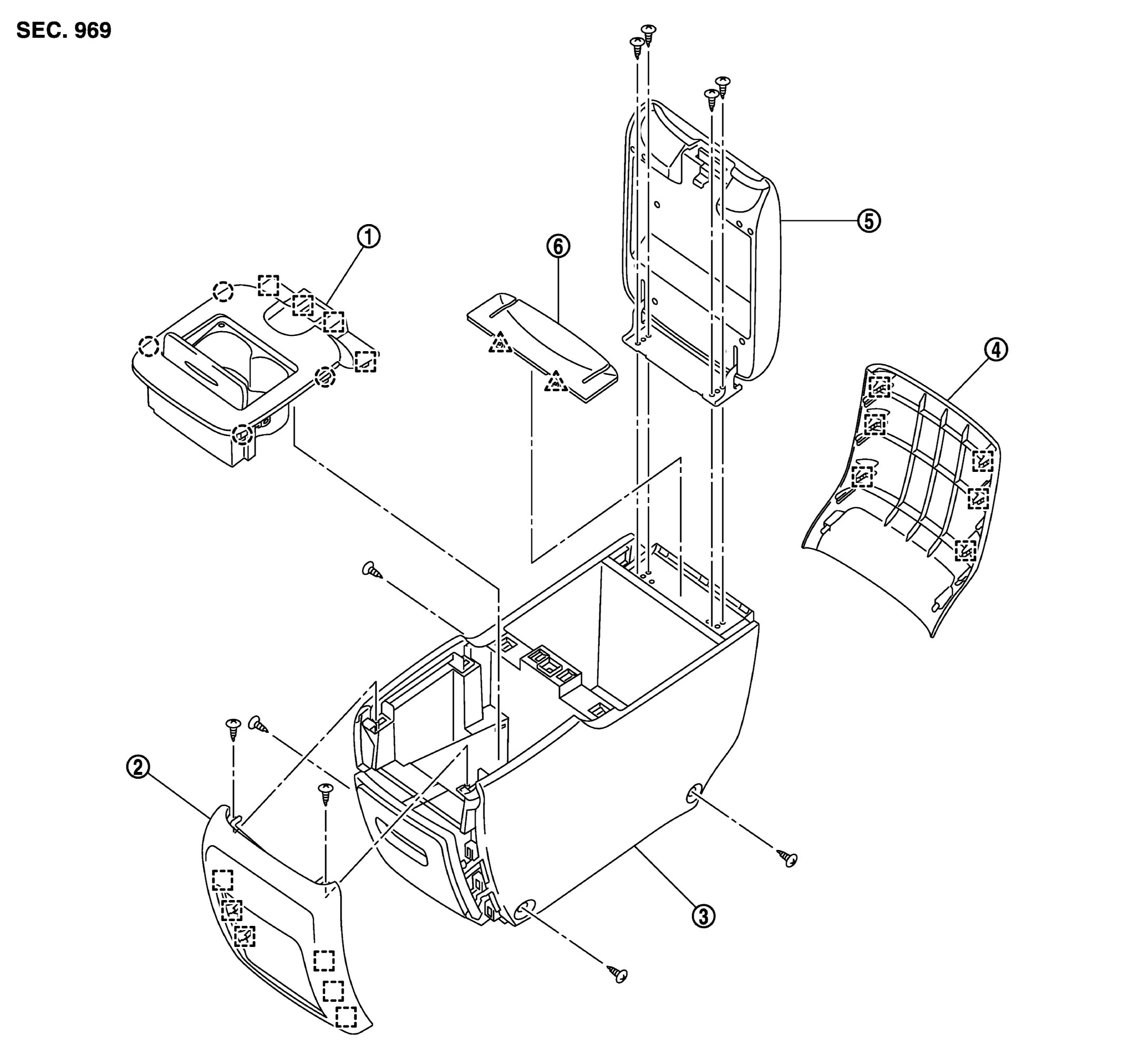

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cup holder assembly	2.	Rear console front finisher	3.	Rear console body assembly
4.	Rear console rear finisher	5.	Rear console lid assembly	6.	Rear console hinge mask
	: Clip
	: Pawl
	: Metal clip
