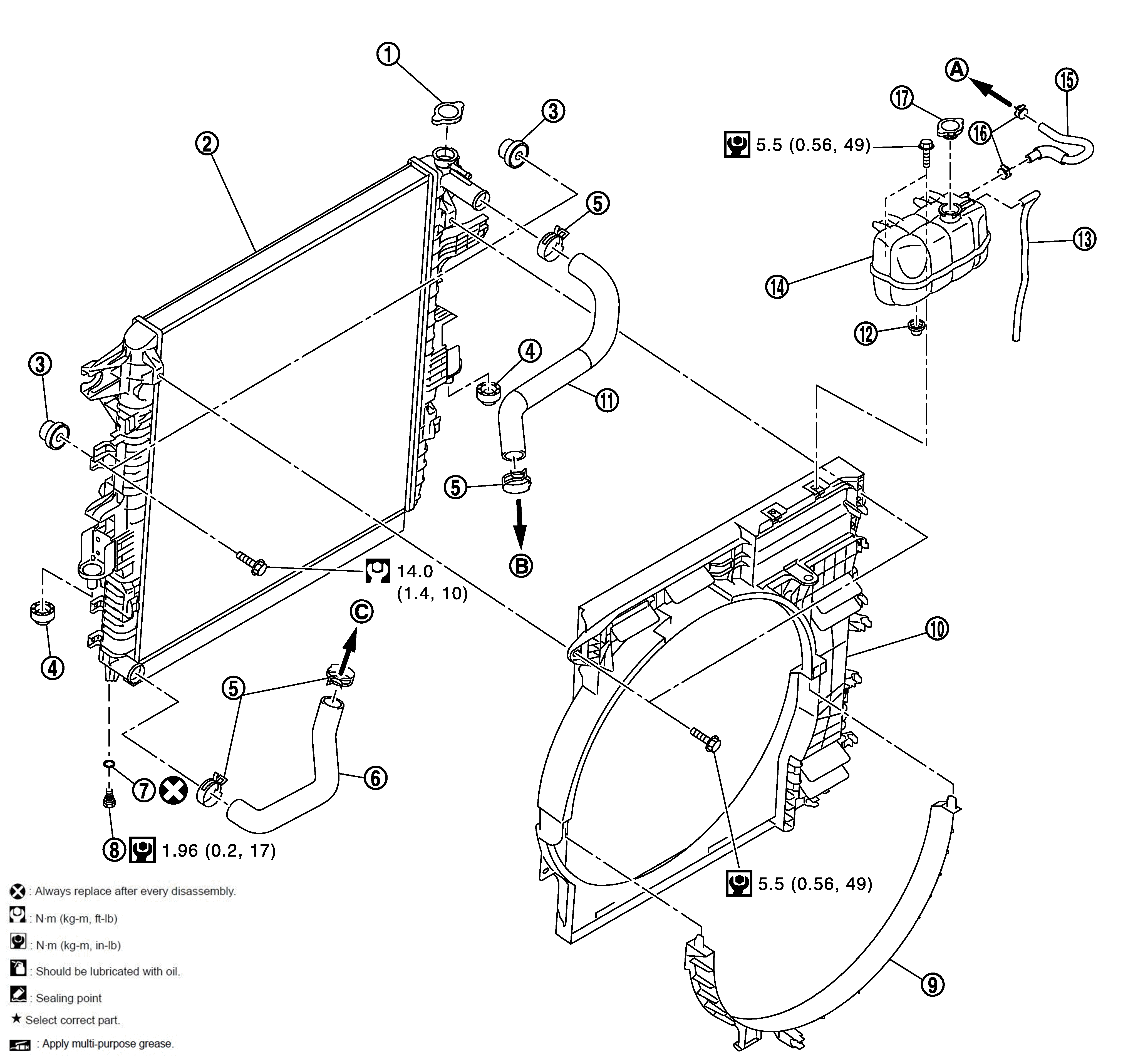

Exploded View
| 1. | Radiator cap | 2. | Radiator | 3. | Mounting rubber (upper) |
| 4. | Mounting rubber (lower) | 5. | Clamp | 6. | Radiator hose (lower) |
| 7. | O - ring | 8. | Drain plug | 9. | Fan shroud (lower) |
| 10. | Fan shroud (upper) | 11. | Radiator hose (upper) | 12. | Mounting rubber (lower) |
| 13. | Reservoir tank hose | 14. | Reservoir tank | 15. | Reservoir tank hose |
| 16. | Clamp | 17. | Reservoir tank cap | ||
| A. | To radiator | B. | To water outlet | C. | To water inlet |
| : N•m (kg - m, ft - lb) | |||||
| : N•m (kg - m, in - lb) |
