Disassembly And Assembly: Disassembly

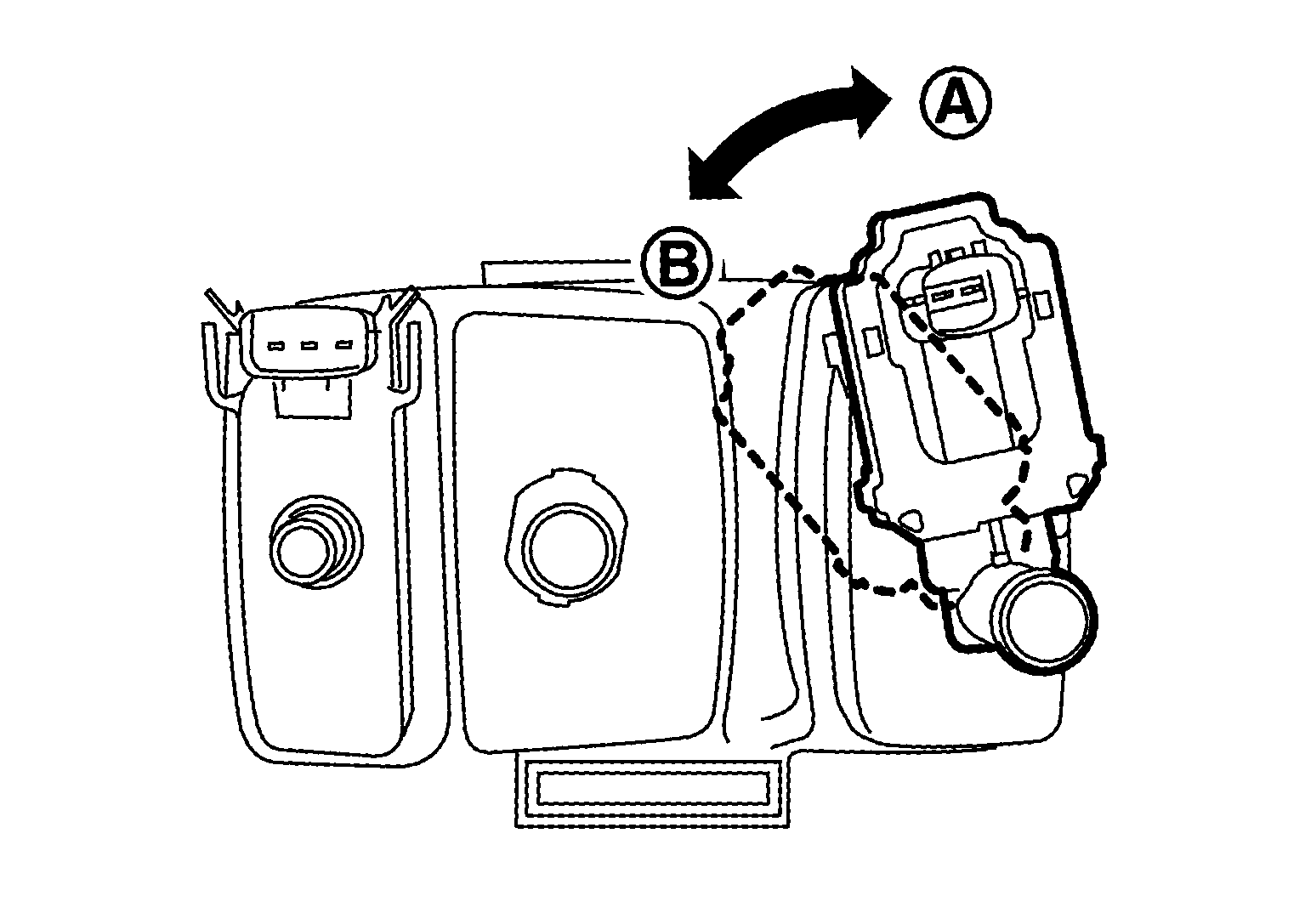

  1. Disengage the pawl and turn EVAP canister vent control valve counterclockwise.
    G07024976Courtesy of NISSAN NORTH AMERICA, INC.
    • Lock (A)
    • Unlock (B)
  2. Remove the EVAP canister vent control valve.
