Side Shaft: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold extension tube retainer with puller, then press out side shaft using a press.
    G04076237Courtesy of NISSAN NORTH AMERICA, INC.

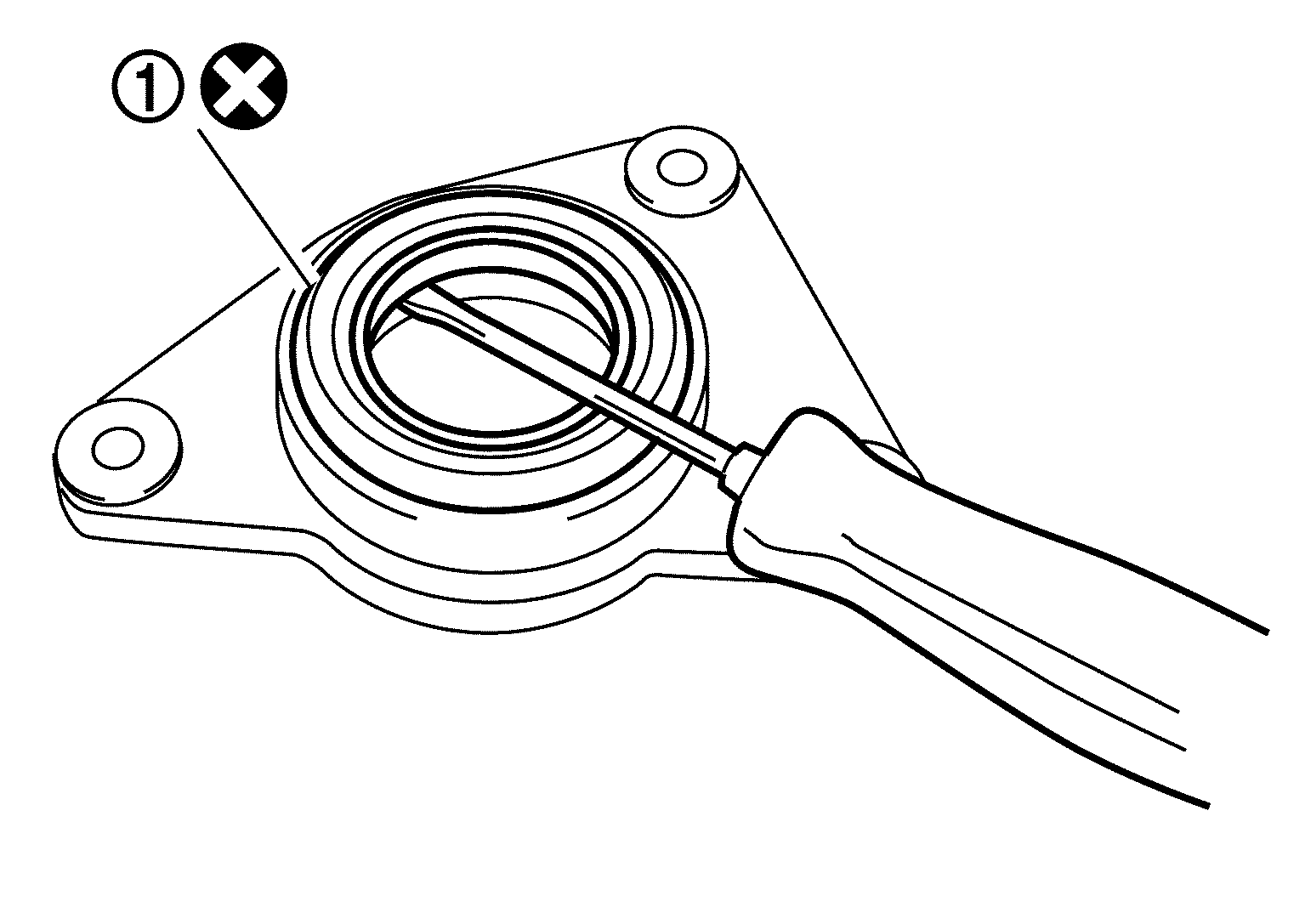

  2. Remove side shaft oil seal (1) from extension tube retainer with a suitable tool.
    G04076238Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never damage extension tube retainer.

  3. Remove side shaft bearing from extension tube retainer.
  4. Remove O-ring from extension tube retainer.
  5. Remove dust seal from side shaft.
