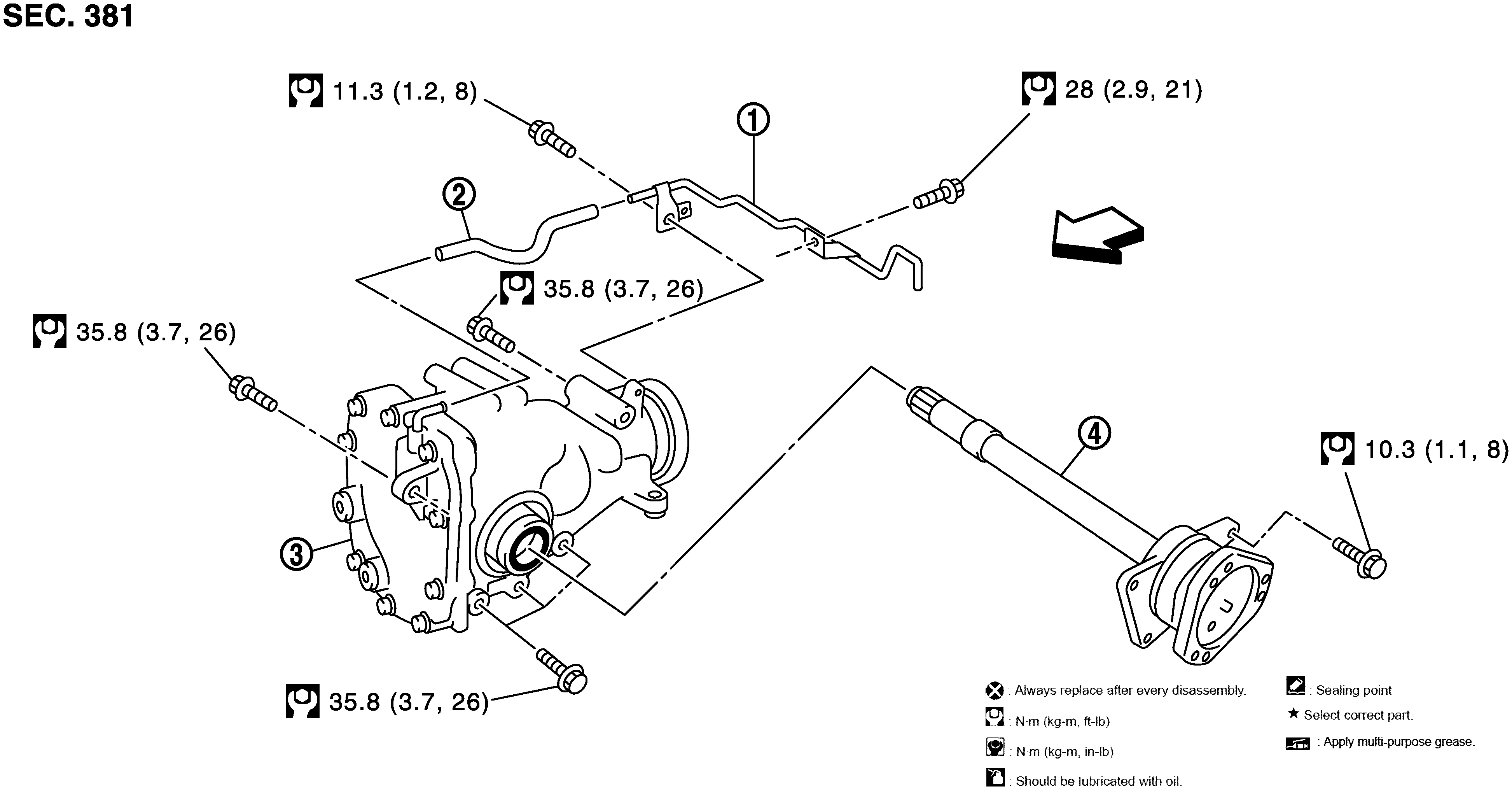

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Breather tube | 2. | Breather hose | 3. | Front final drive assembly |
| 4. | Side shaft | ||||
| Refer to COMPONENTS for symbols in the illustration. | |||||
