Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

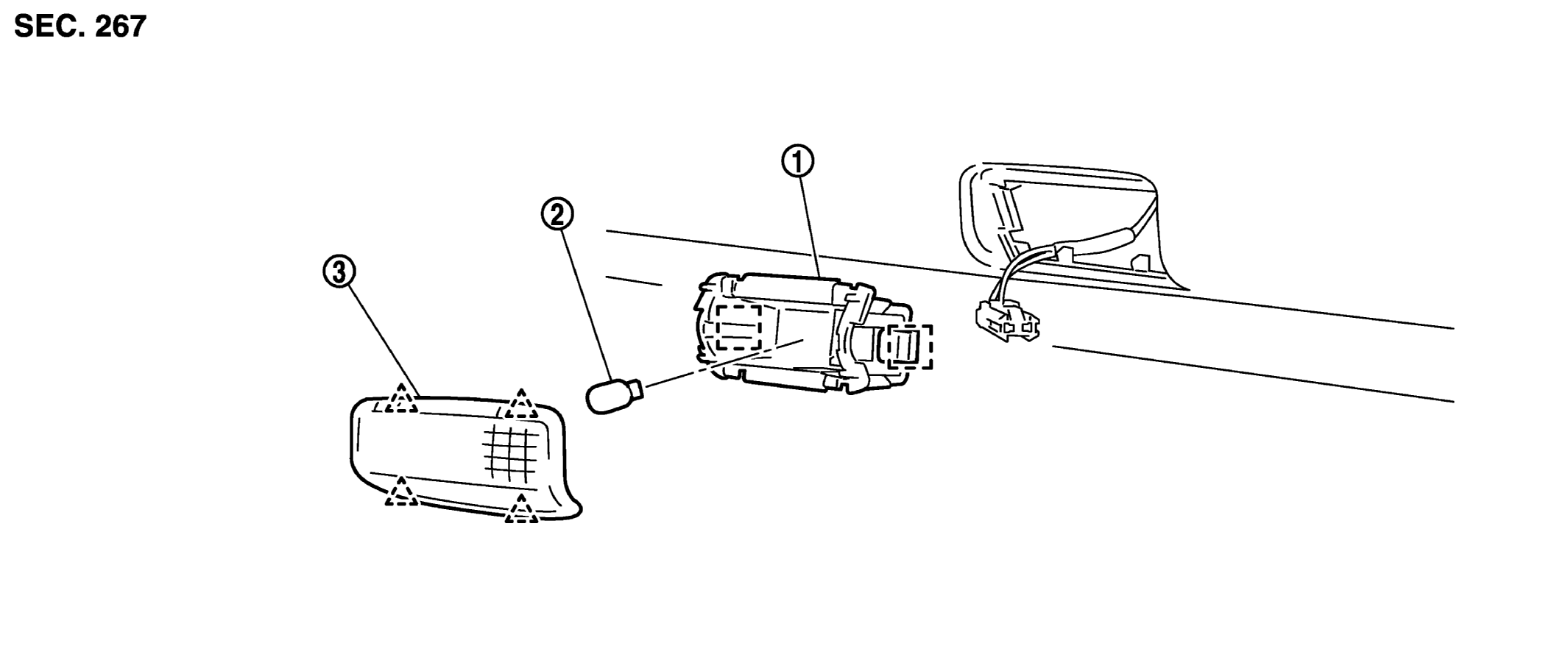

GNSJMLIA0541ZZ-541Courtesy of NISSAN NORTH AMERICA, INC.
1. Step lamp housing 2. Bulb 3. Lens
SANKAKU-H : Pawl
SHIKAKU-H : Metal clip
