Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

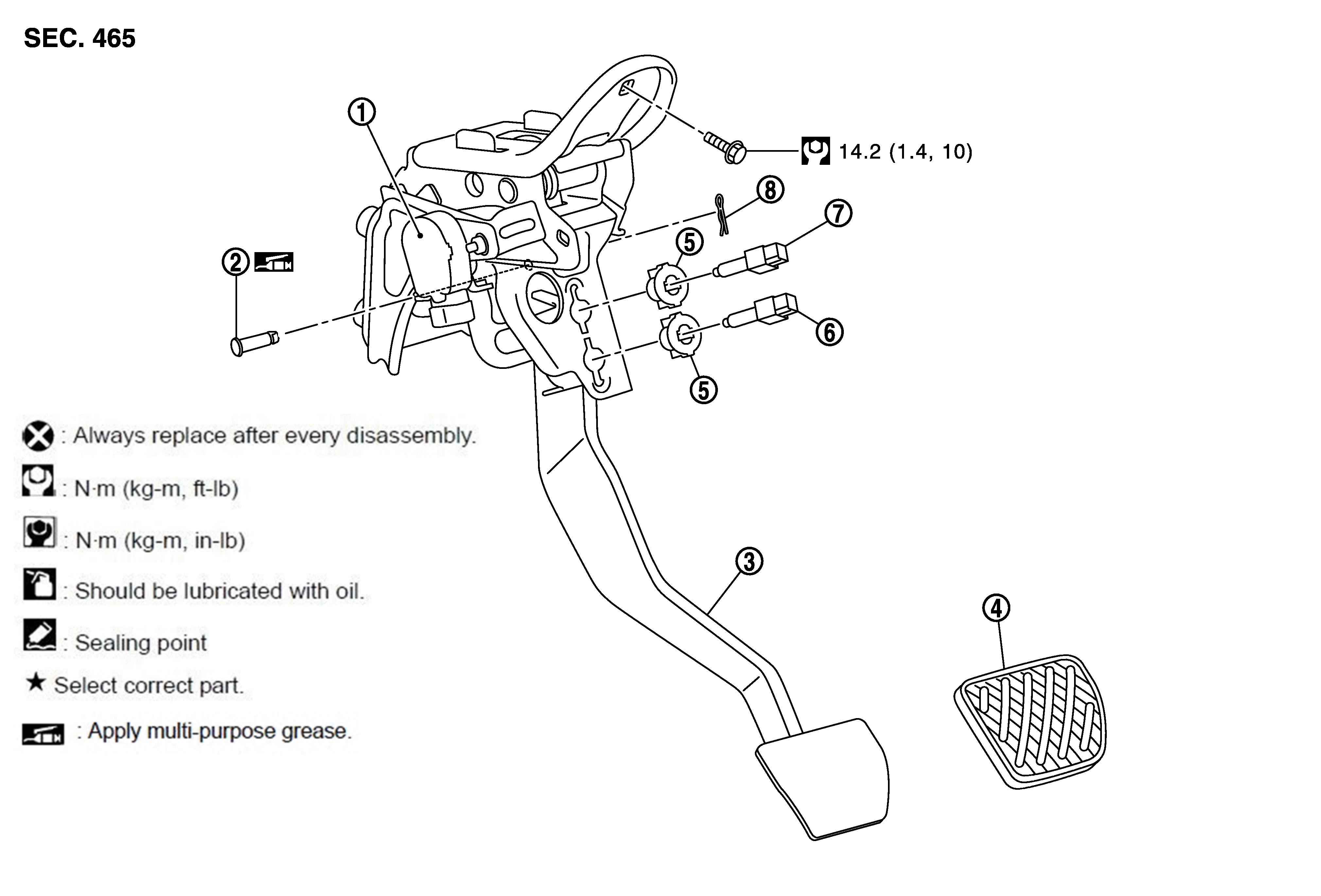

Fig 1: Brake Pedal Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake pedal stroke sensor (with pre-crash seat belt)	2.	Clevis pin	3.	Brake pedal assembly
4.	Brake pedal pad	5.	Clip	6.	Brake switch
7.	Stop lamp switch	8.	Snap pin
: Apply multi-purpose grease.
	: N•m (kg - m, ft - lb)
