Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

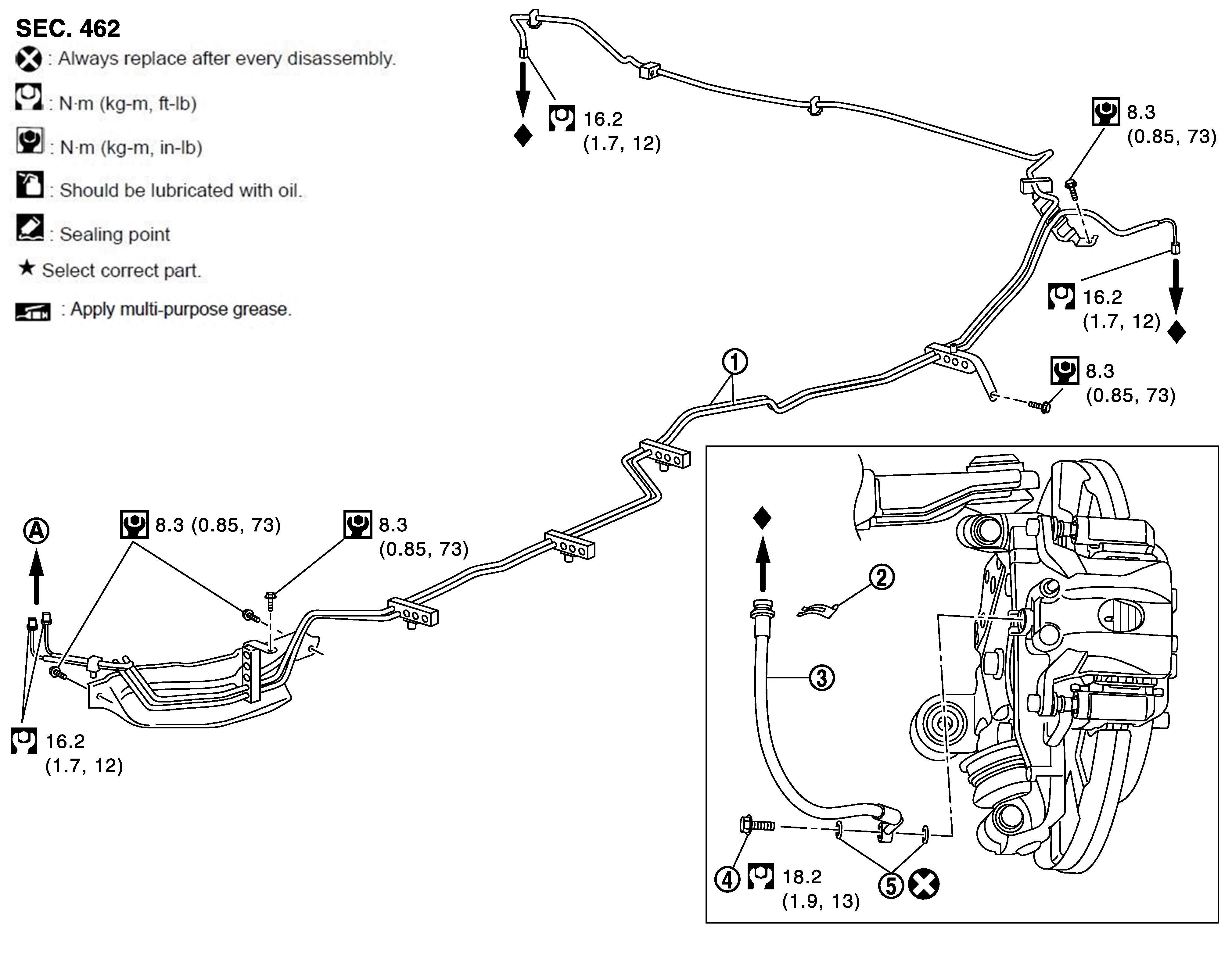

Fig 1: Bleeding Brake System Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake tube	2.	Lock plate	3.	Brake hose
4.	Union bolt	5.	Copper washer
A.	To connector
: Indicates that the part is connected at points with same symbol in actual vehicle.
	: Always replace after every disassembly
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
