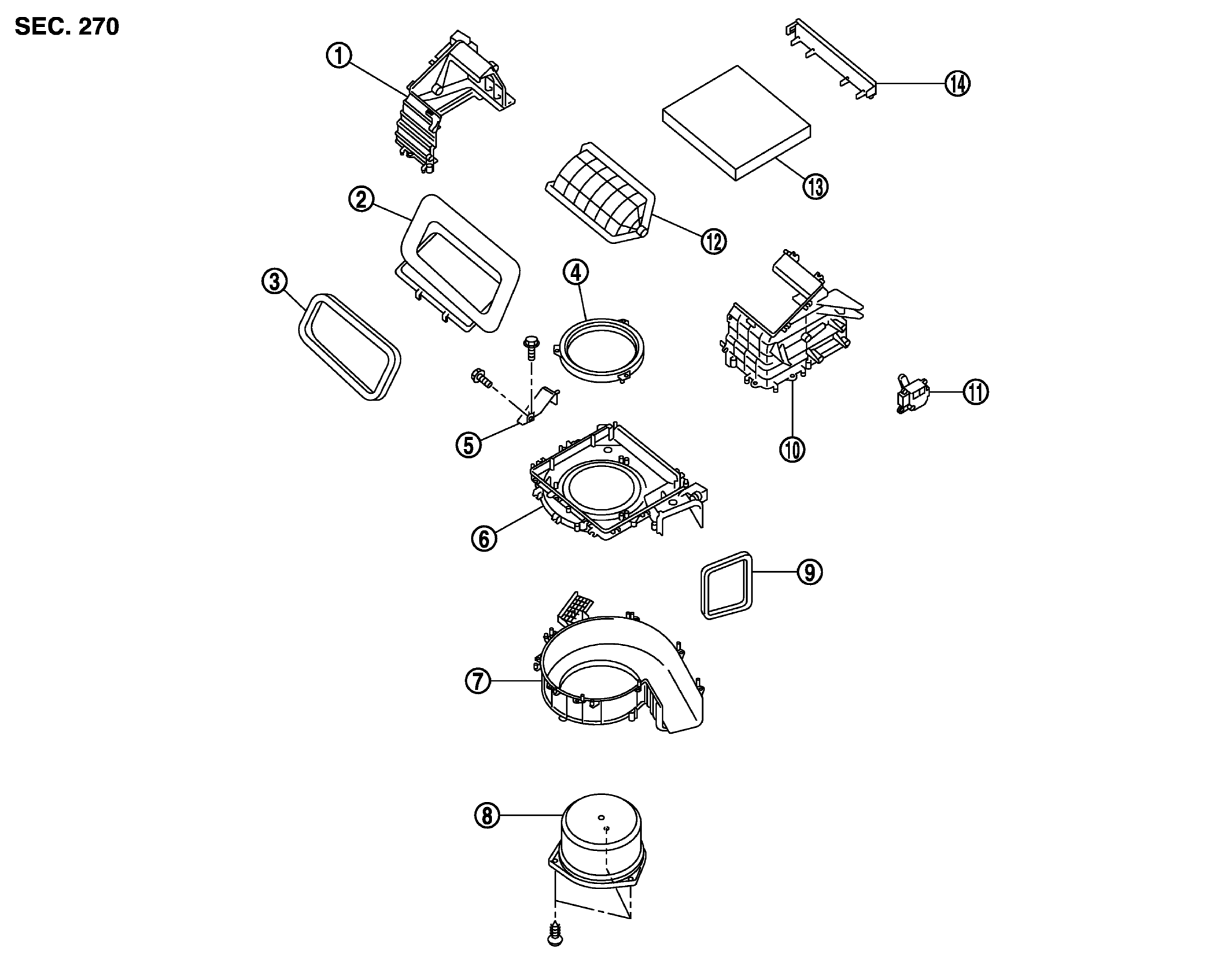

Exploded View With Torque Specifications: Disassembly
WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Shutter box case RH |
2. |
Shutter box upper case |
3. |
Packing |
| 4. |
Bellmouth ring |
5. |
Blower unit bracket |
6. |
Intake upper case |
| 7. |
Intake lower case |
8. |
Blower motor assembly |
9. |
Packing |
| 10. |
Shutter box case LH |
11. |
Intake door motor |
12. |
Intake door |
| 13. |
In-cabin microfilter |
14. |
Filter cover |
|
|
