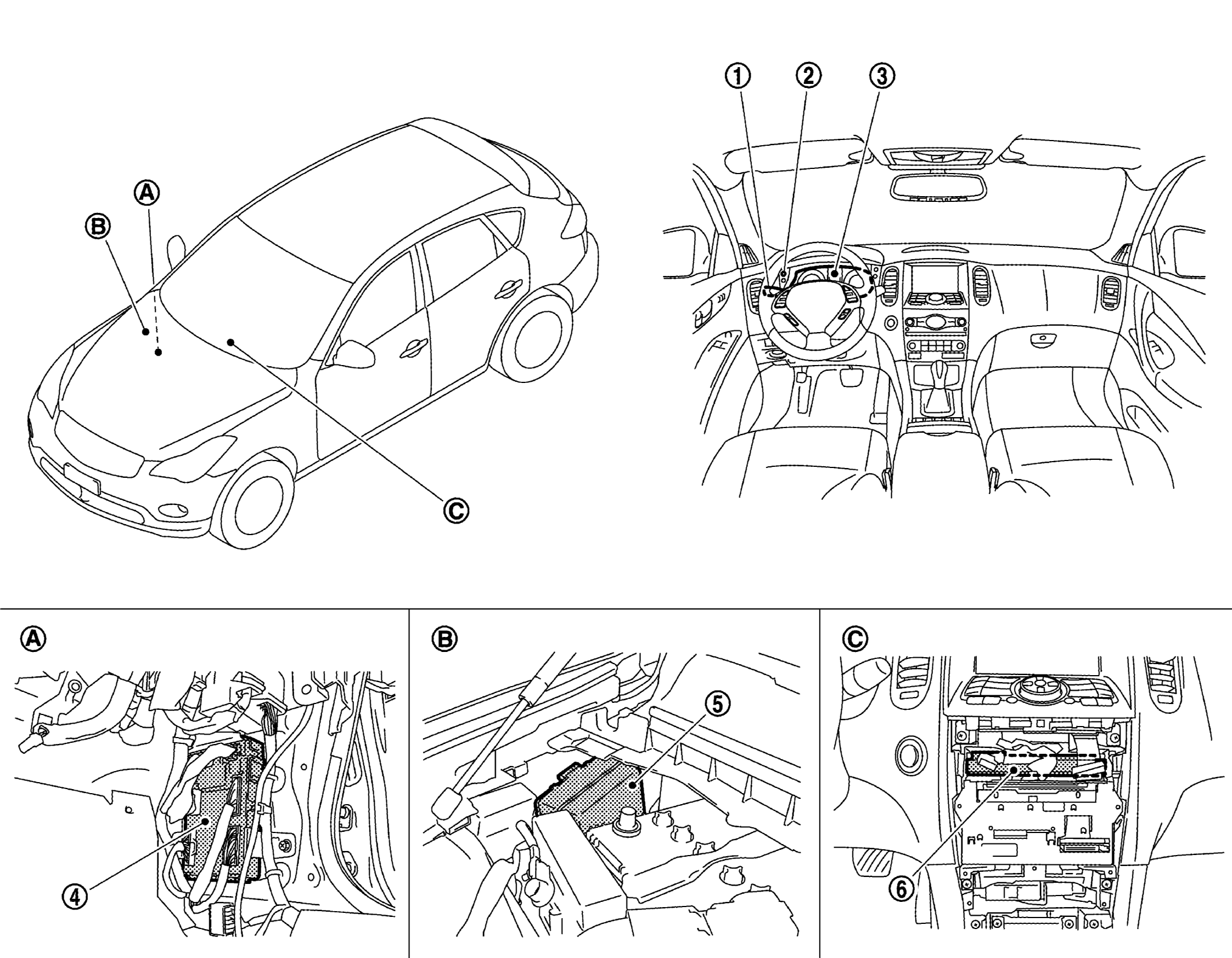

Component Location
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Combination switch |
2. |
Illumination control switch |
3. |
Combination meter |
| 4. |
BCM |
5. |
IPDM E/R |
6. |
Unified meter and A/C amp. |
| A |
Dash side lower (passenger side) |
B. |
Engine room dash panel (RH) |
C. |
Behind the cluster lid C |
