Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove console lid assembly.
    1. Open the console lid.

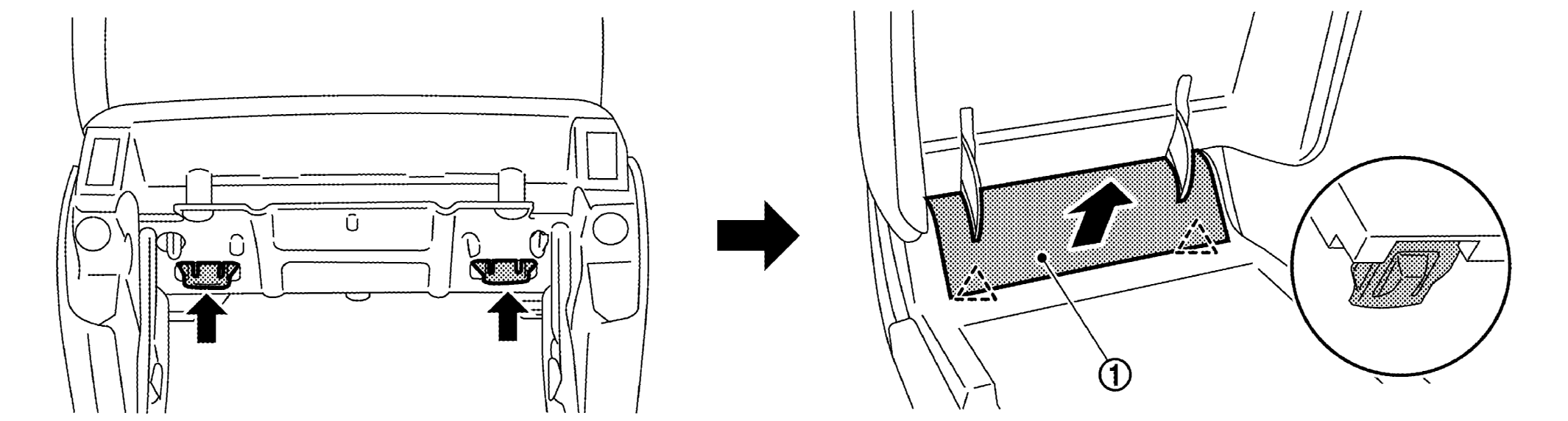

    2. From the back of the center console, push the pawls forward to remove the console mask (1).
      GNSJMJIA4989ZZ-989Courtesy of NISSAN NORTH AMERICA, INC.
      SANKAKU-H : Pawl
    3. Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.
      G05729923Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove console pocket.
  3. Reverse a center console assembly.
  4. Remove console sub harness.
    G05729924Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove console sub harness (1) fixing screws (A).
    2. Remove console sub harness fixing clip (B).
    3. Disconnect switch connectors.
  5. Remove switch panel.
    G05729925Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove switch panel (1) fixing screws (A).
    2. Pull up switch panel.
  6. Remove console center bracket.
    G07166587Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove console center bracket (1) fixing screws (A).
    2. Pull up console center bracket.
  7. Remove console pad LH.
    G05729926Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove console pad LH (1) fixing screws (A).
    2. Pull the console pad LH crosswise.
  8. Remove console pad RH.
    G05729927Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove console pad RH (1) fixing screws (A).
    2. Pull the console pad RH crosswise.
  9. Remove cup holder assembly.
    G05729930Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove cup holder assembly (1) fixing screws (A).
    2. Pull up cup holder assembly.
  10. Remove console lid release button.
    G07166591Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove console lid release button (1) fixing screws (A).
    2. Pull toward the arrow direction.
  11. Remove console upper bracket.
    G05729929Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove console upper bracket (1) fixing screws (A).
    2. Pull up console upper bracket.
