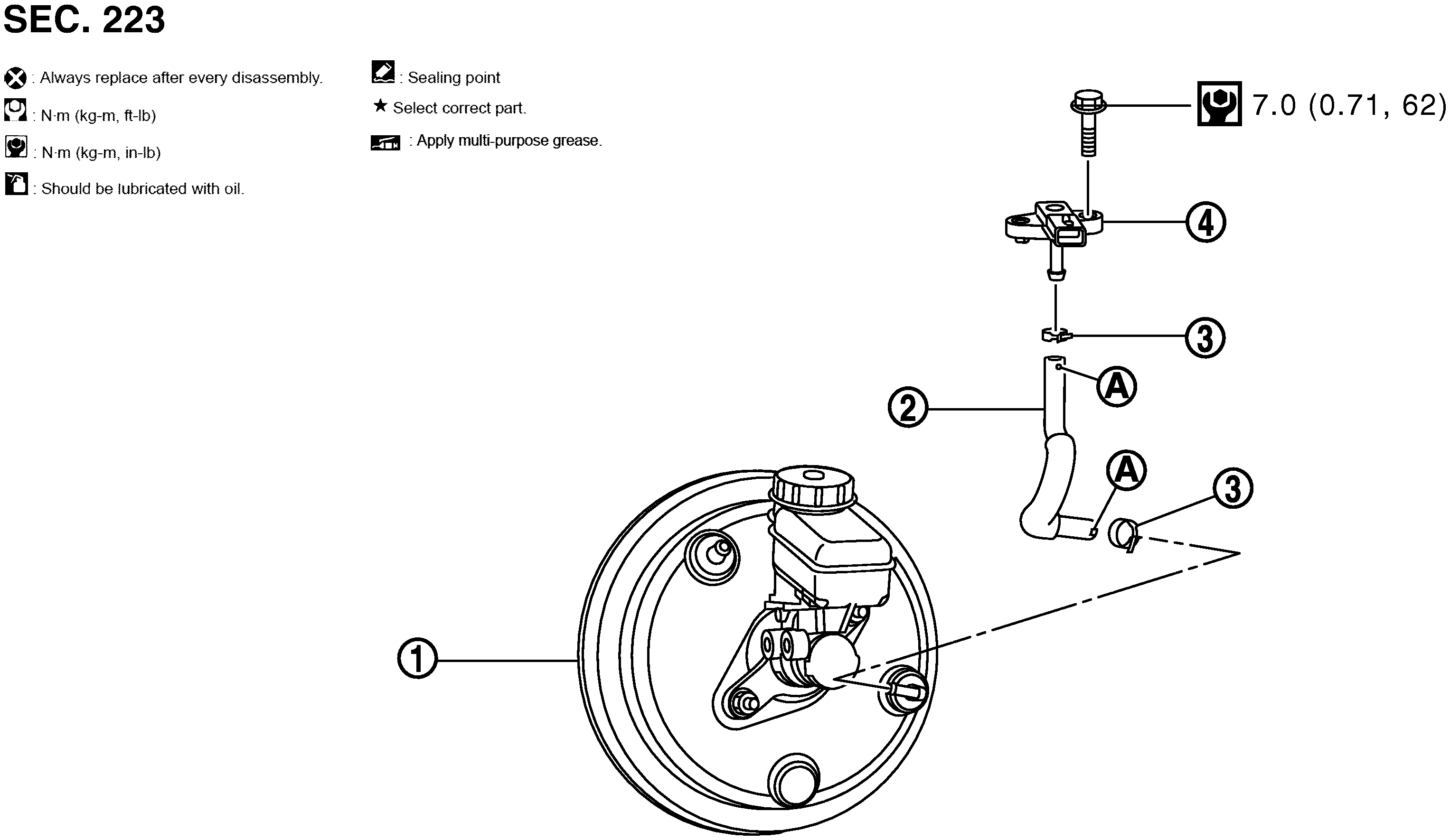

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Brake booster | 2. | Vacuum hose | 3. | Clamp |
| 4. | Brake booster pressure sensor | ||||
| A. | Paint mark | ||||
| Refer to COMPONENTS for symbols in the figure. | |||||
