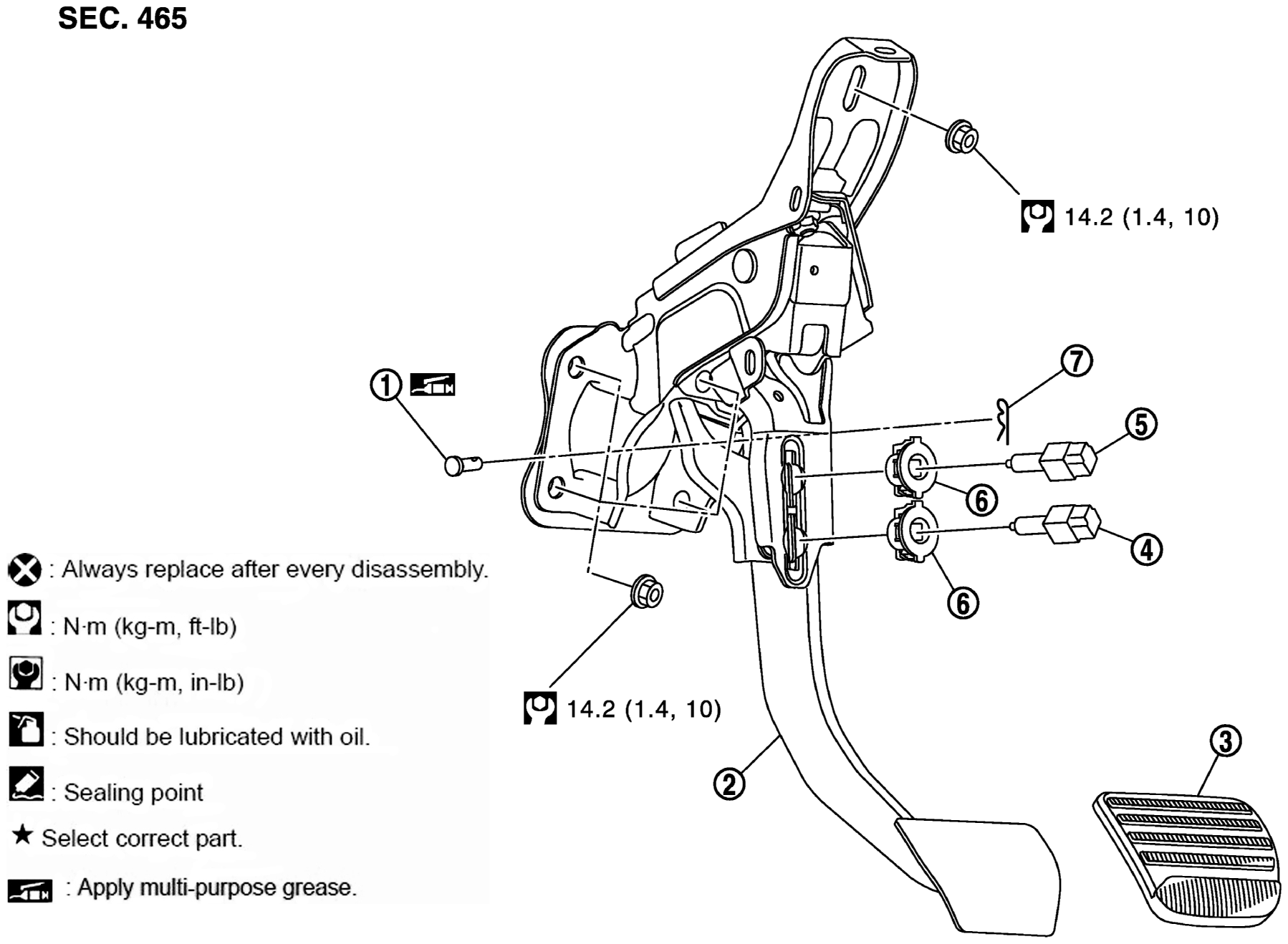

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Clevis pin | 2. | Brake pedal assembly | 3. | Brake pedal pad |
| 4. | ASCD brake switch | 5. | Stop lamp switch | 6. | Clip |
| 7. | Snap pin | ||||
| : Apply multi-purpose grease. | |||||
| Refer to COMPONENTS for symbols not described on the above. | |||||
