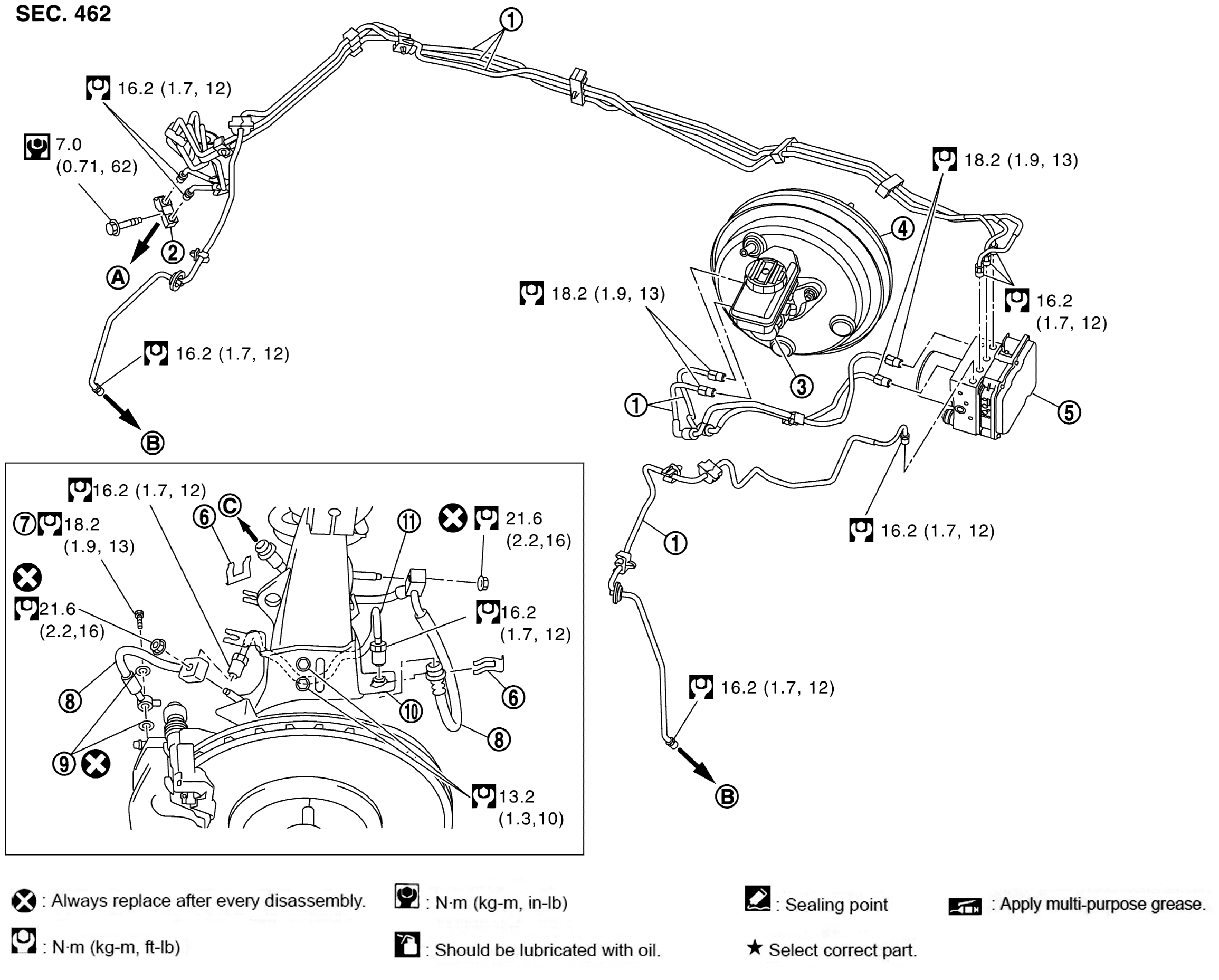

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Brake tube | 2. | Connector | 3. | Master cylinder |
| 4. | Brake booster | 5. | ABS actuator and electric unit (control unit) | 6. | Lock plate |
| 7. | Union bolt | 8. | Brake hose | 9. | Copper washer |
| 10. | Brake hose bracket | 11. | Brake tube | ||
| A. | To rear brake tube | B. | To front brake hose | C. | To front brake tube |
| Refer to COMPONENTS for symbols in the figure. | |||||
