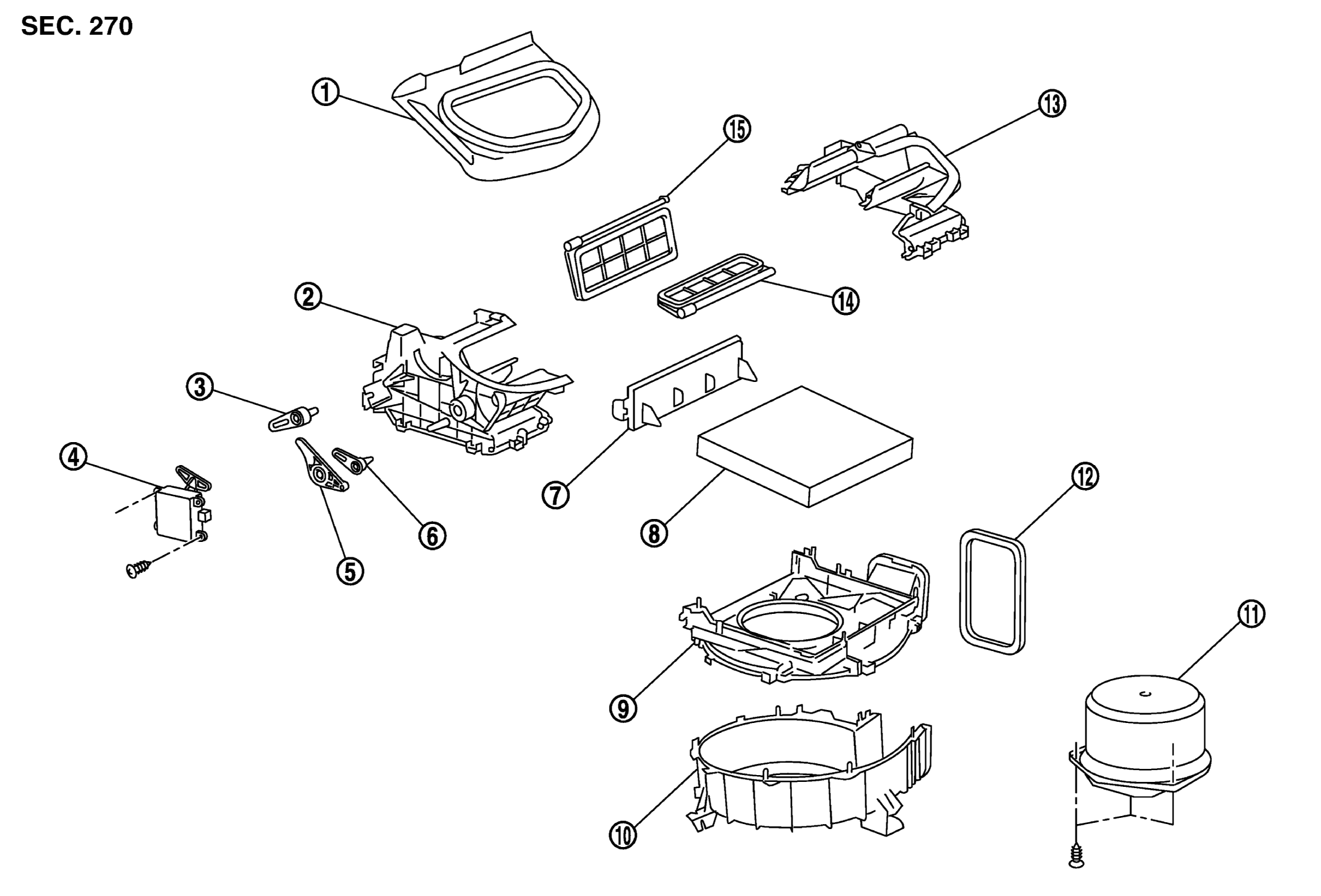

Exploded View With Torque Specifications: Disassembly
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Adapter |
2. |
Intake box RH |
3. |
Intake door lever 2 |
| 4. |
Intake door motor |
5. |
Intake door link |
6. |
Intake door lever 1 |
| 7. |
Filter cover |
8. |
In-cabin microfilter |
9. |
Intake upper case |
| 10. |
Intake lower case |
11. |
Blower motor assembly |
12. |
Seal |
| 13. |
Intake box LH |
14. |
Intake door 1 |
15. |
Intake door 2 |
