Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

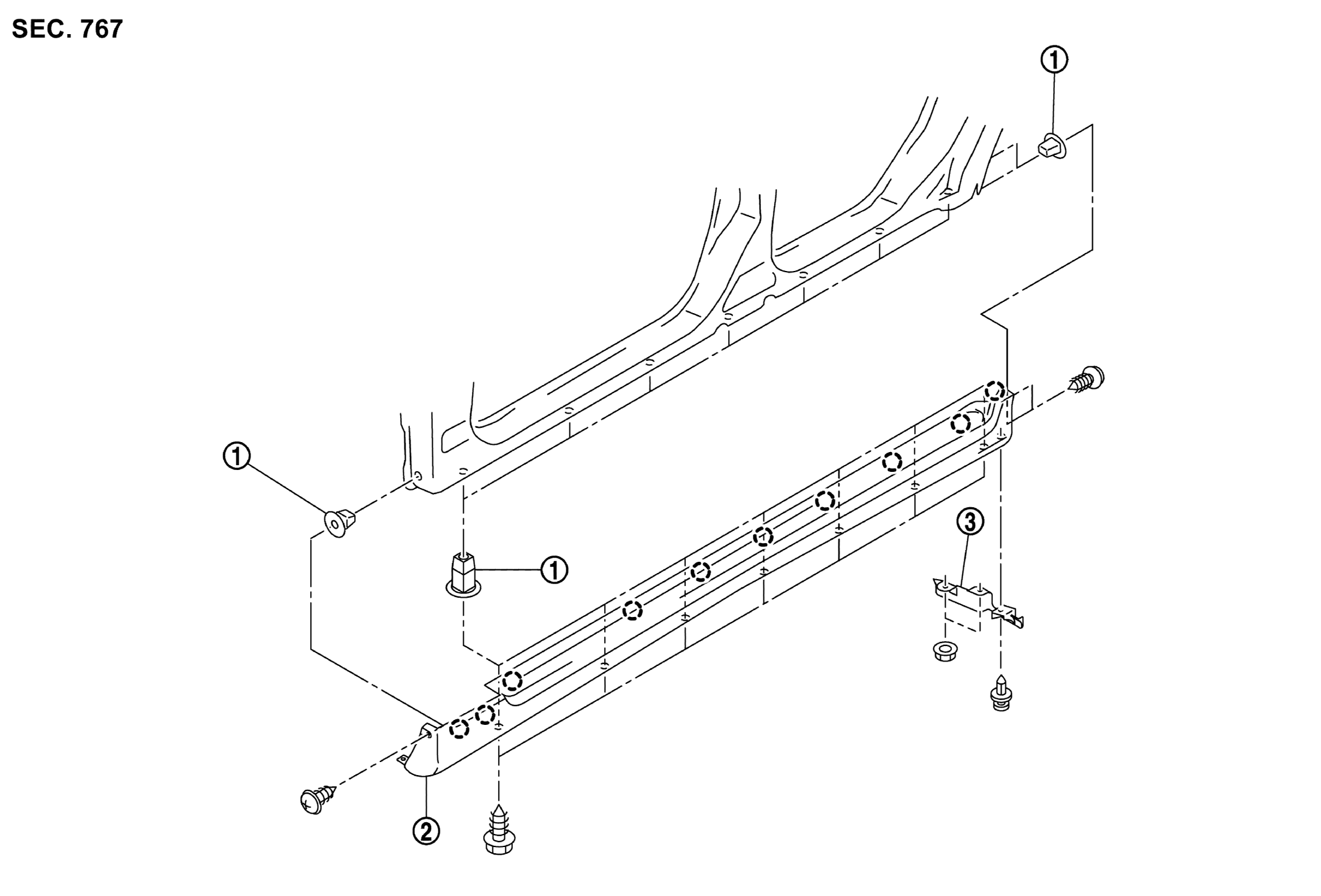

GNSJMKIB4799ZZ-799Courtesy of NISSAN NORTH AMERICA, INC.
1. Grommet 2. Center mud guard 3. Wind deflector
MARU-H : Clip
