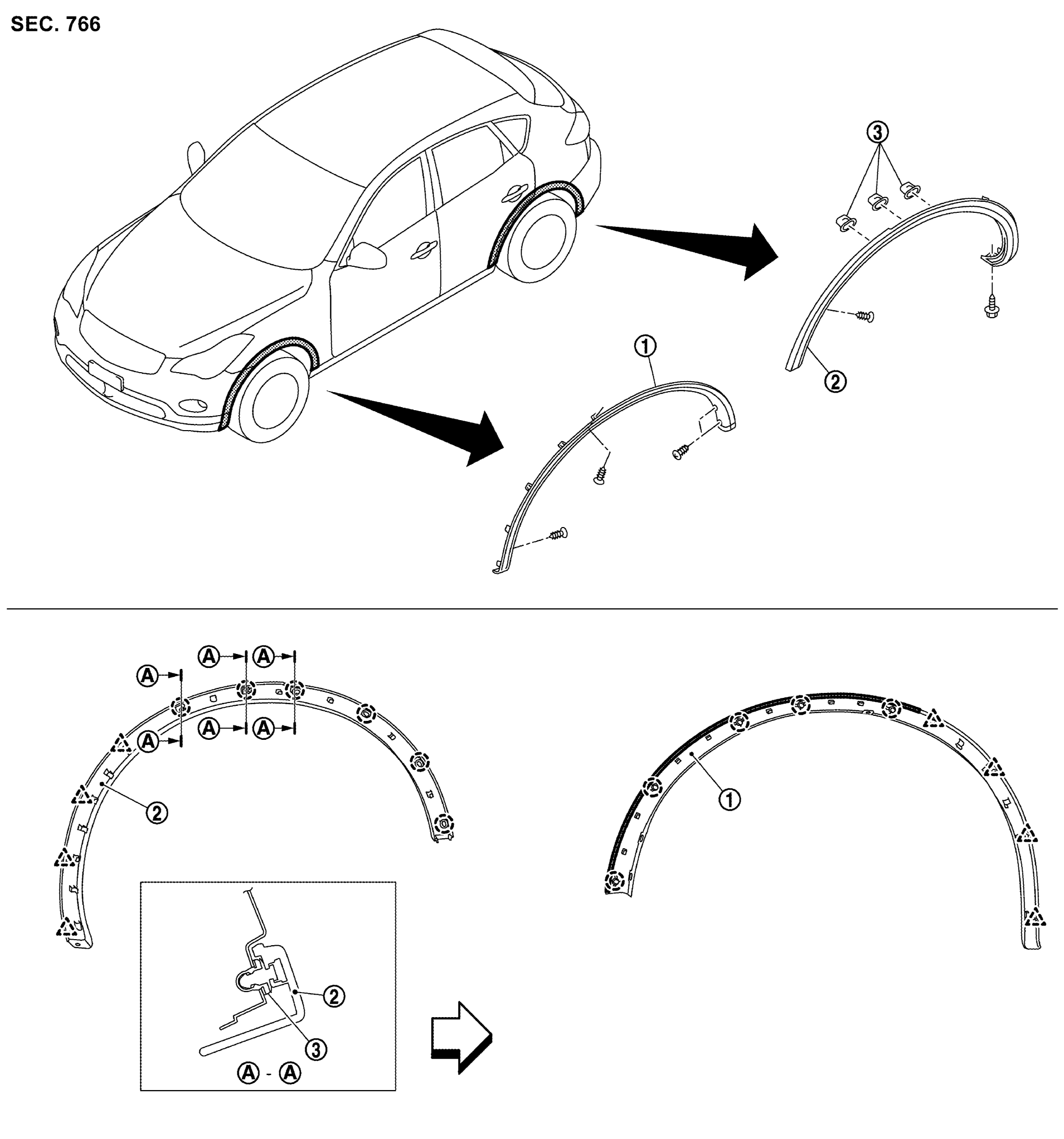

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front fillet molding	2.	Rear fillet molding	3.	Grommet
	: Clip
	: Pawl
	: Vehicle front
