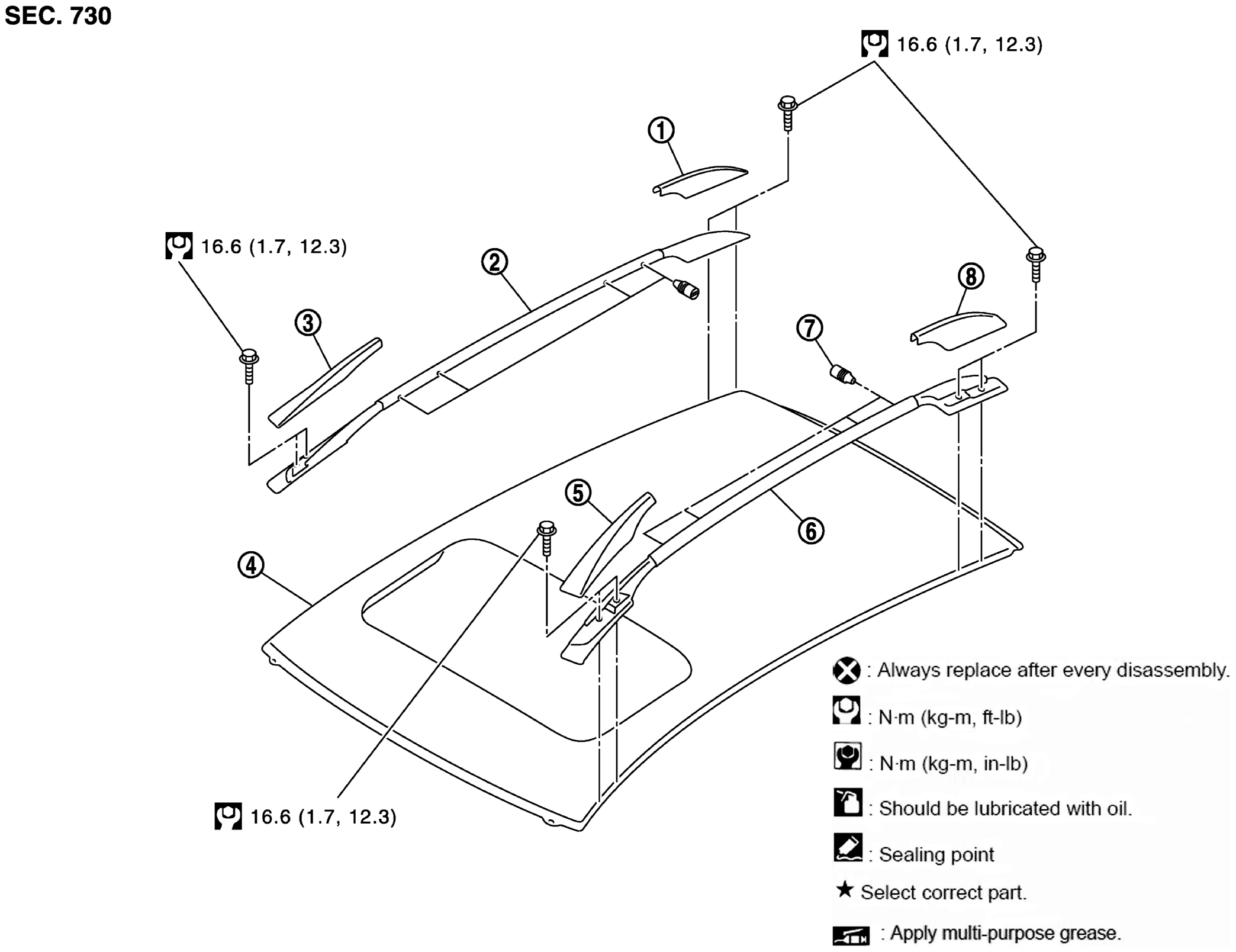

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Rear roof rail cover RH |
2. |
Roof rail assembly RH |
3. |
Front roof rail cover RH |
| 4. |
Roof panel |
5. |
Front roof rail cover LH |
6. |
Roof rail assembly LH |
| 7. |
Roof rack cap |
8. |
Rear roof rail cover LH |
|
|
 |
: N•m (kg - m, ft - lb) |
