Exploded View: Removal

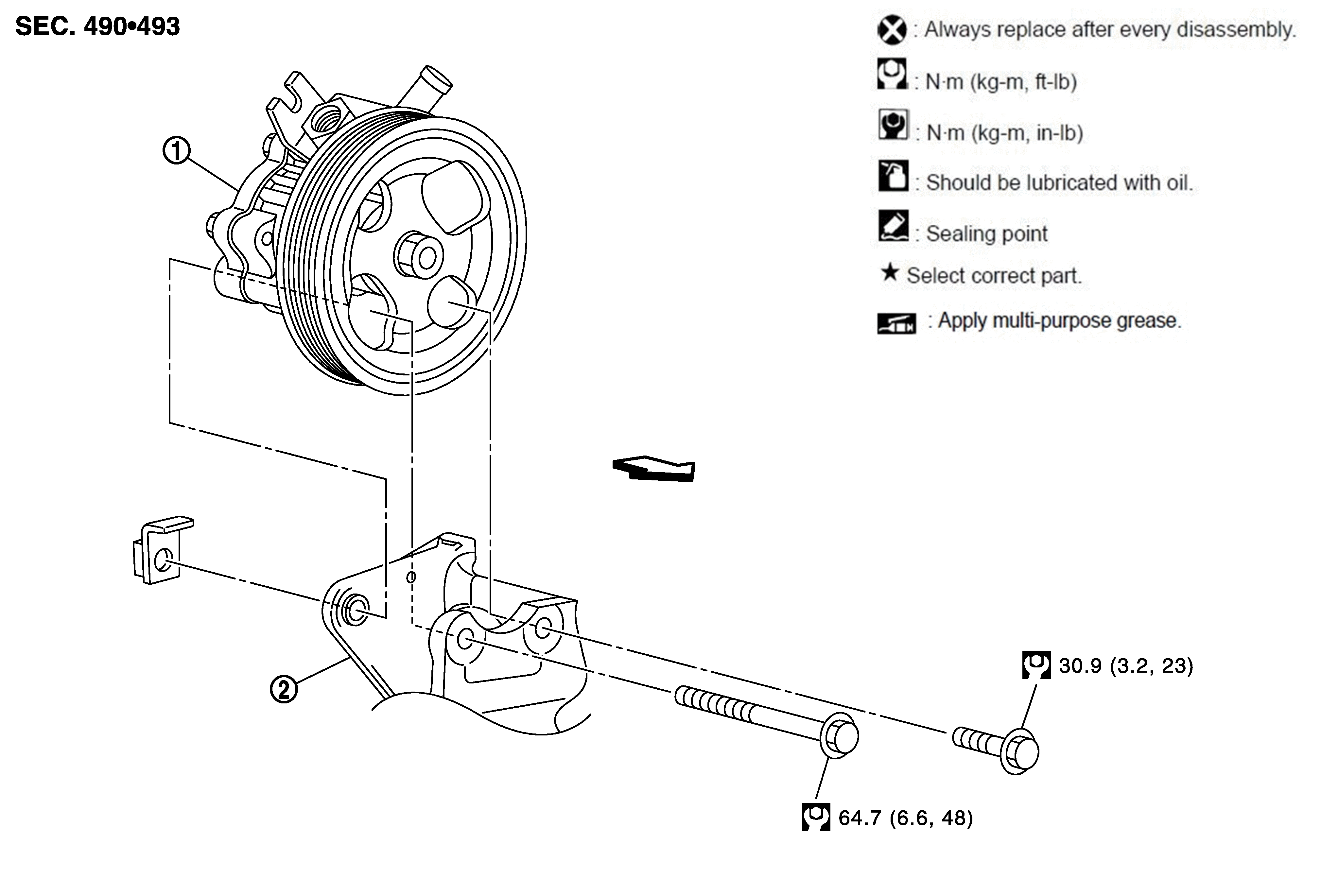

Fig 1: Power Steering Oil Pump With Torque Specifications
GNSJPGIA0031GB-031Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering oil pump 2. Bracket
ARROW : Vehicle front
BOLT : N•m (kg - m, ft - lb)
