Exploded View

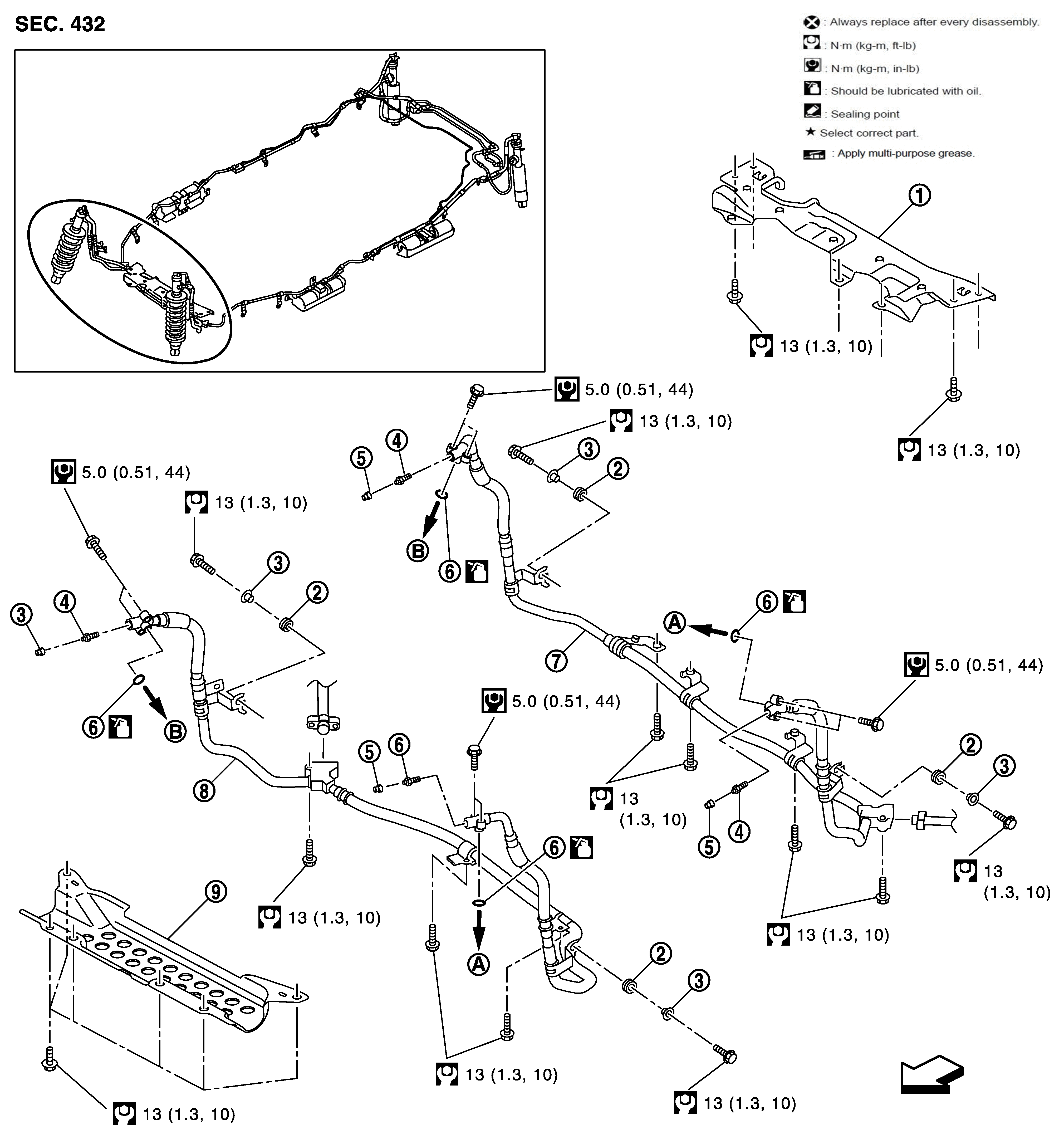

Fig 1: Front Tube Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Protector B	2.	Bushing	3.	Collar
4.	Bleeder valve	5.	Cap	6.	O-ring
7.	Front tube assembly A	8.	Front tube assembly B	9.	Protector A
A.	To front shock absorber LH	B.	To front shock absorber RH
:	Vehicle front
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
:	Apply genuine NISSAN hydraulic suspension fluid
