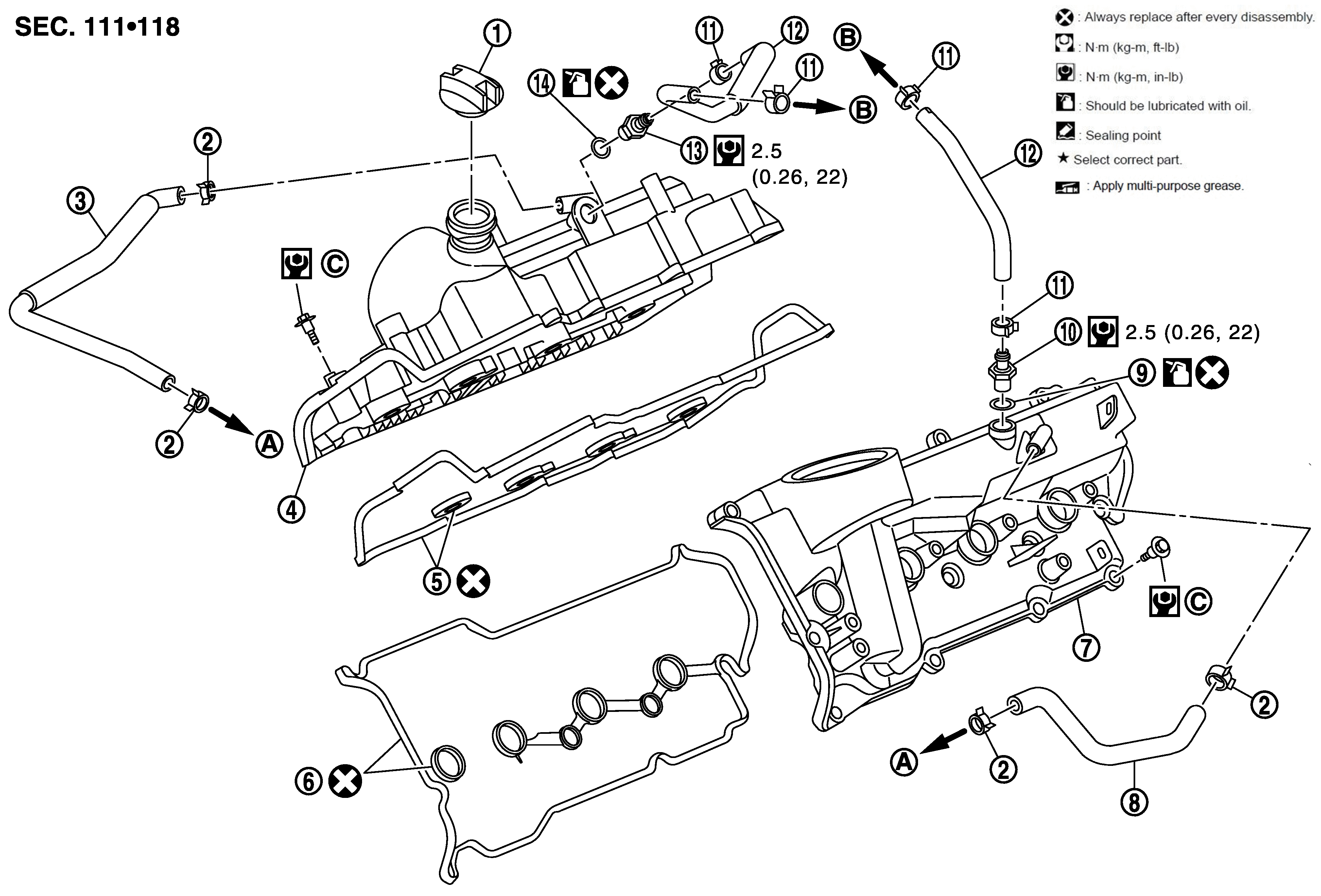

Exploded View
| 1. | Oil filler cap | 2. | Clamp | 3. | PCV hose |
| 4. | Rocker cover (bank 2) | 5. | Rocker cover gasket (bank 2) | 6. | Rocker cover gasket (bank 1) |
| 7. | Rocker cover (bank 1) | 8. | PCV hose | 9. | O-ring |
| 10. | PCV valve | 11. | Clamp | 12. | PCV hose |
| 13. | PCV valve | 14. | O-ring | ||
| A. | To air duct | B. | To intake manifold | C. | Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION . |
| : N•m (kg - m, in - lb) | |||||
| : Always replace after every disassembly. | |||||
