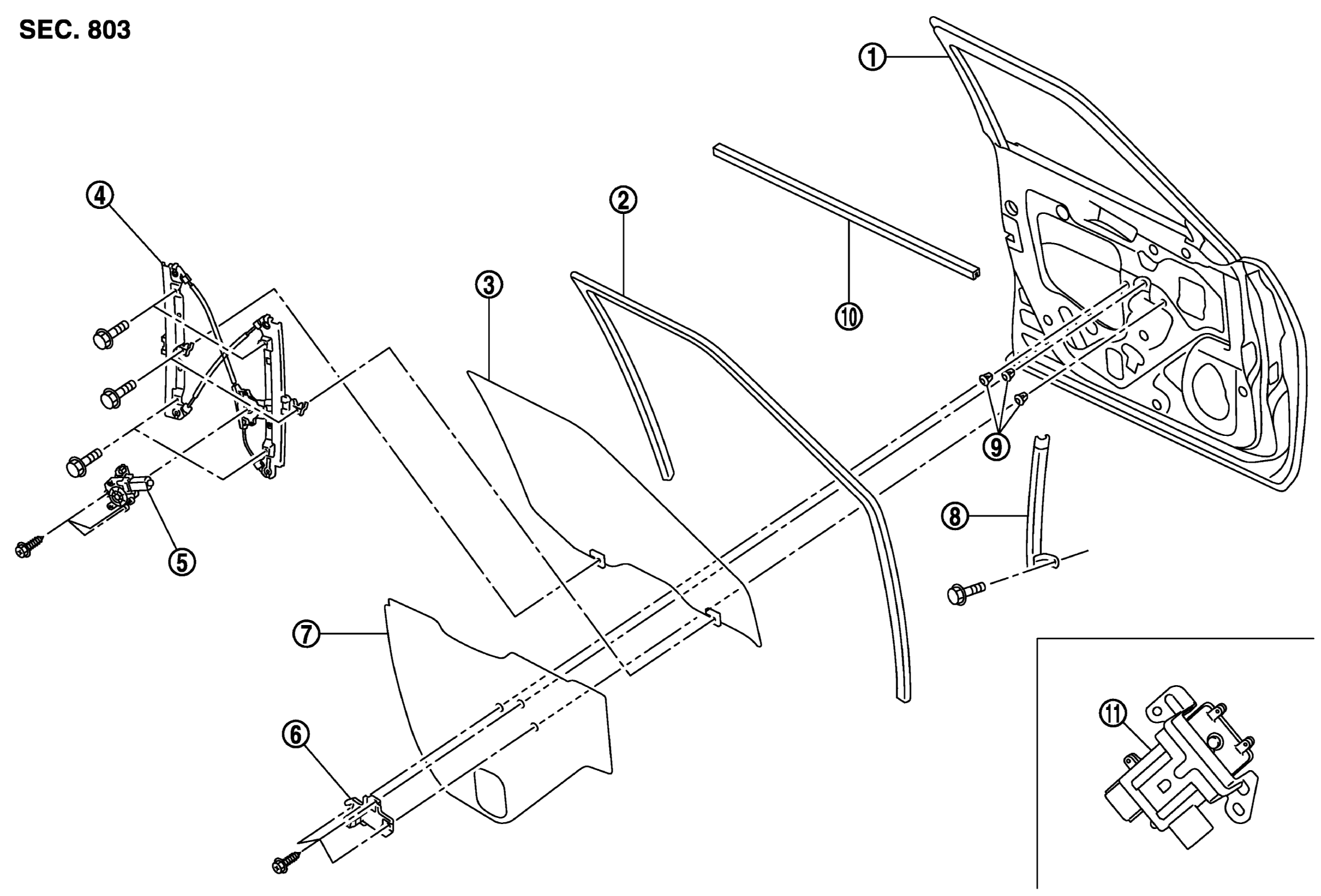

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front door panel	2.	Front door glass run	3.	Front door glass
4.	Front door regulator	5.	Front door power window motor	6.	Front door pull handle bracket
7.	Front door sealing screen	8.	Front door lower sash	9.	Grommet
10.	Front door inside seal	11.	Power window controller
