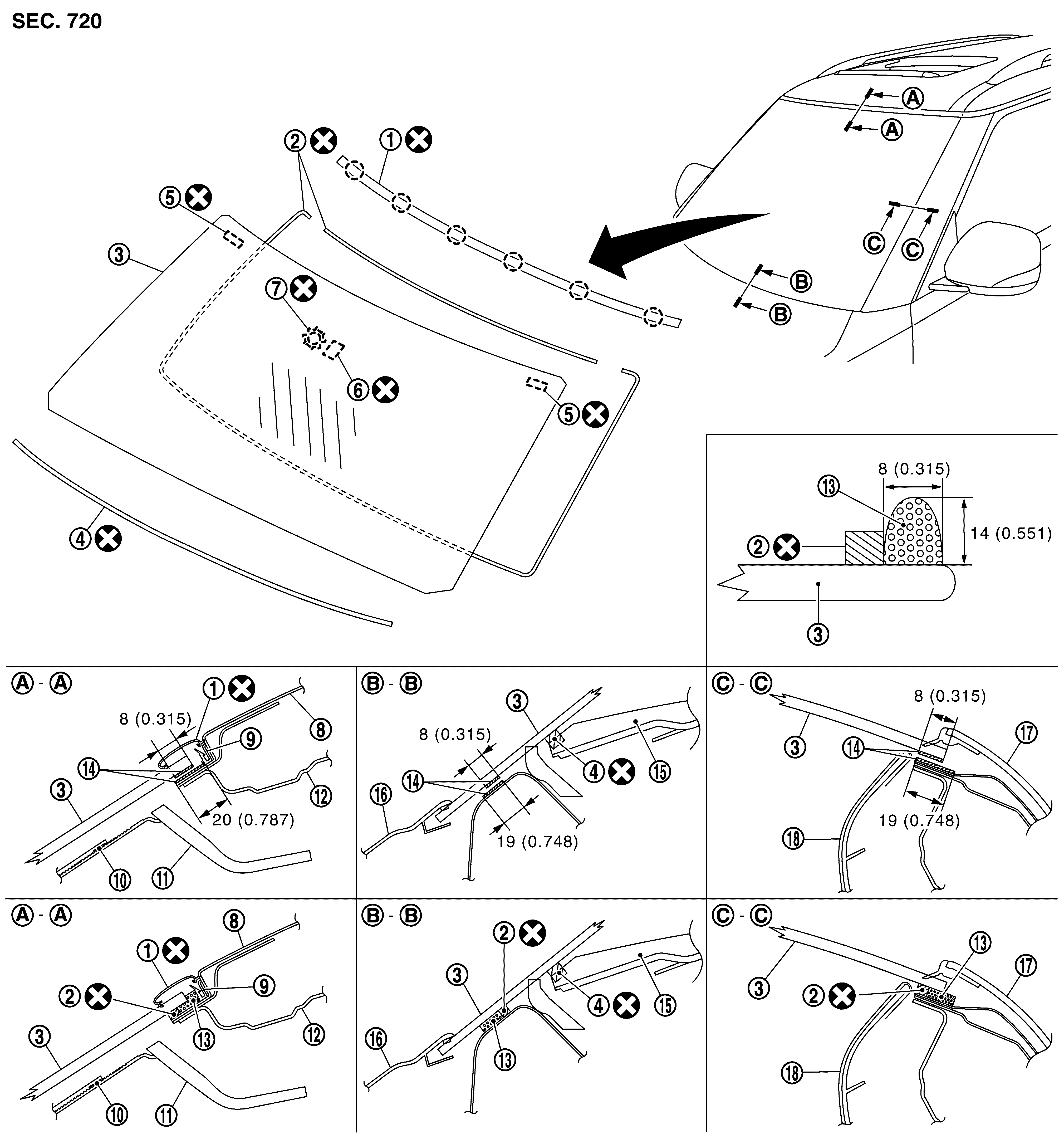

Exploded View With Torque Specifications
| 1. | Windshield molding upper | 2. | Dam sealant rubber (upper, lower) | 3. | Windshield glass |
| 4. | Insulator | 5. | Clip | 6. | Inside mirror base |
| 7. | Rain sensor bracket | 8. | Roof assembly | 9. | Windshield molding upper fastener |
| 10. | Inside mirror cover | 11. | Headlining assembly | 12. | Front roof rail |
| 13. | Adhesive | 14. | Primer | 15. | Instrument panel |
| 16. | Cowl top cover | 17. | Front pillar finisher | 18. | Front pillar garnish |
| : Clip | |||||
| : Always replace after every disassembly. | |||||
| Unit | : mm (in) | ||||
