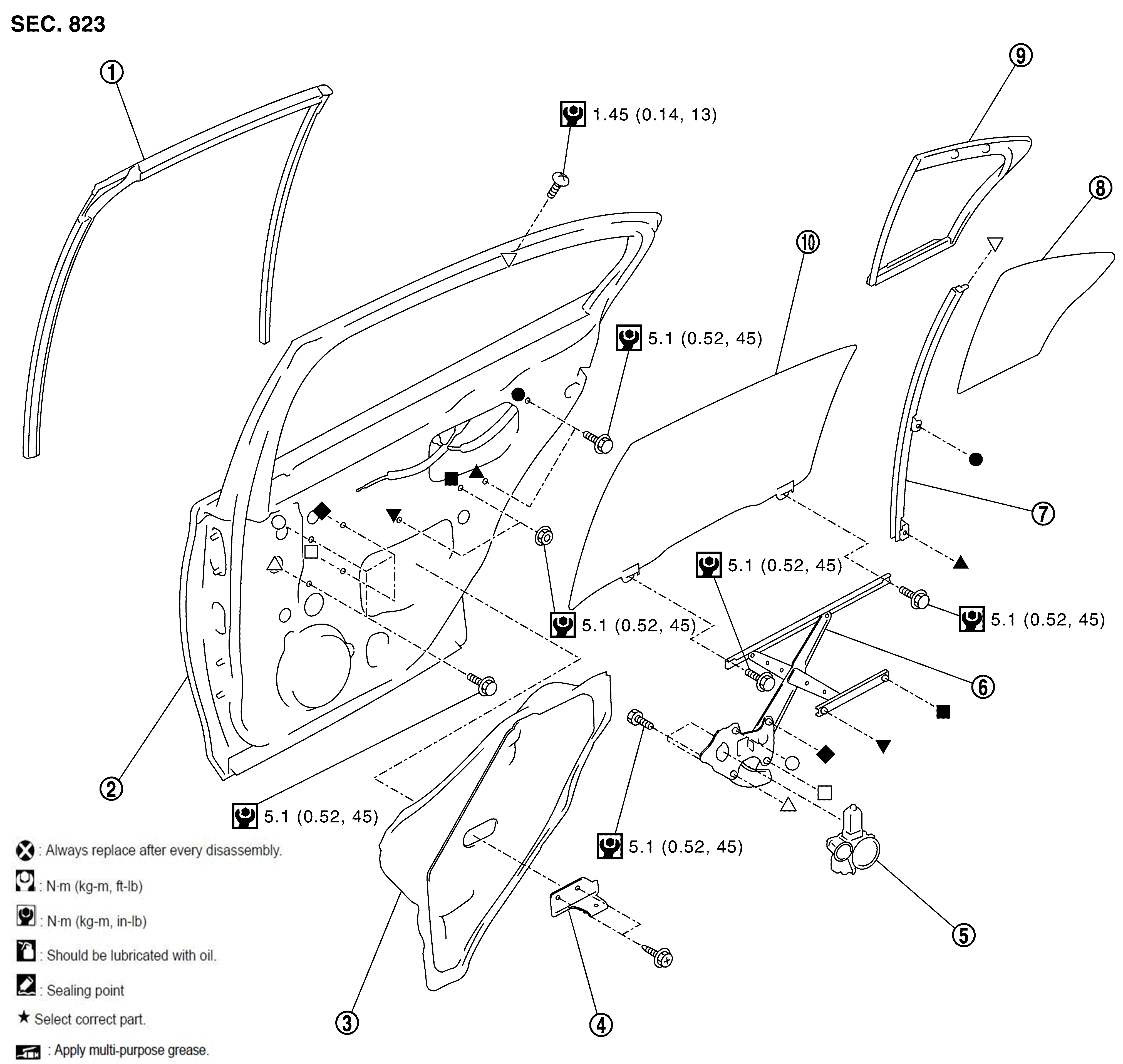

Exploded View

Fig 1: Rear Regulator Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Rear door glass run	Rear door panel	Rear door sealing screen
	Rear door pull handle bracket	Rear door power window motor	Rear door regulator
	Rear door partition sash	Rear door partition glass	Rear door partition glass weather-strip
	Rear door glass
	: N.m (kg-m, in-lb)
, , , , , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.
