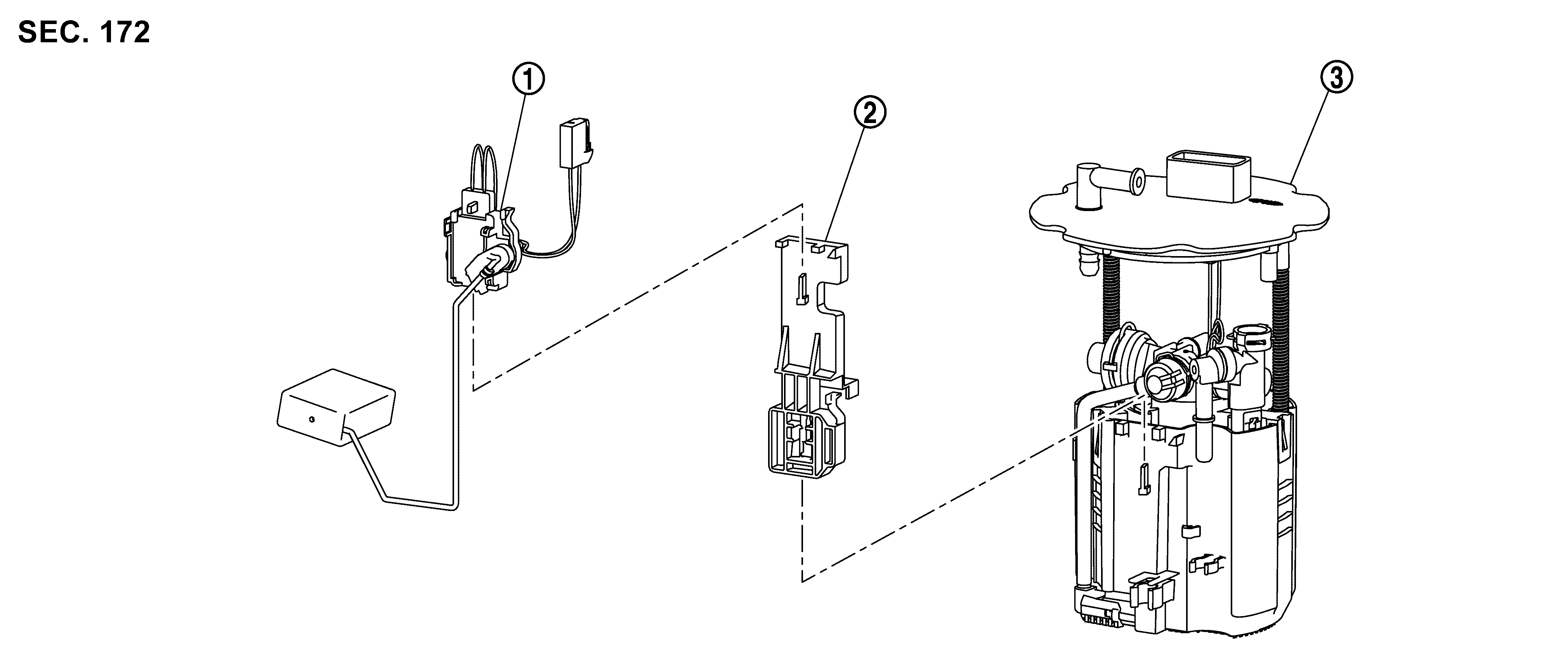

Exploded View: Disassembly

Courtesy of NISSAN NORTH AMERICA, INC.

Main fuel level sensor unit

Adapter

Fuel filter and fuel pump assembly

NOTE: Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.
