For VR30DDTT Engine Models

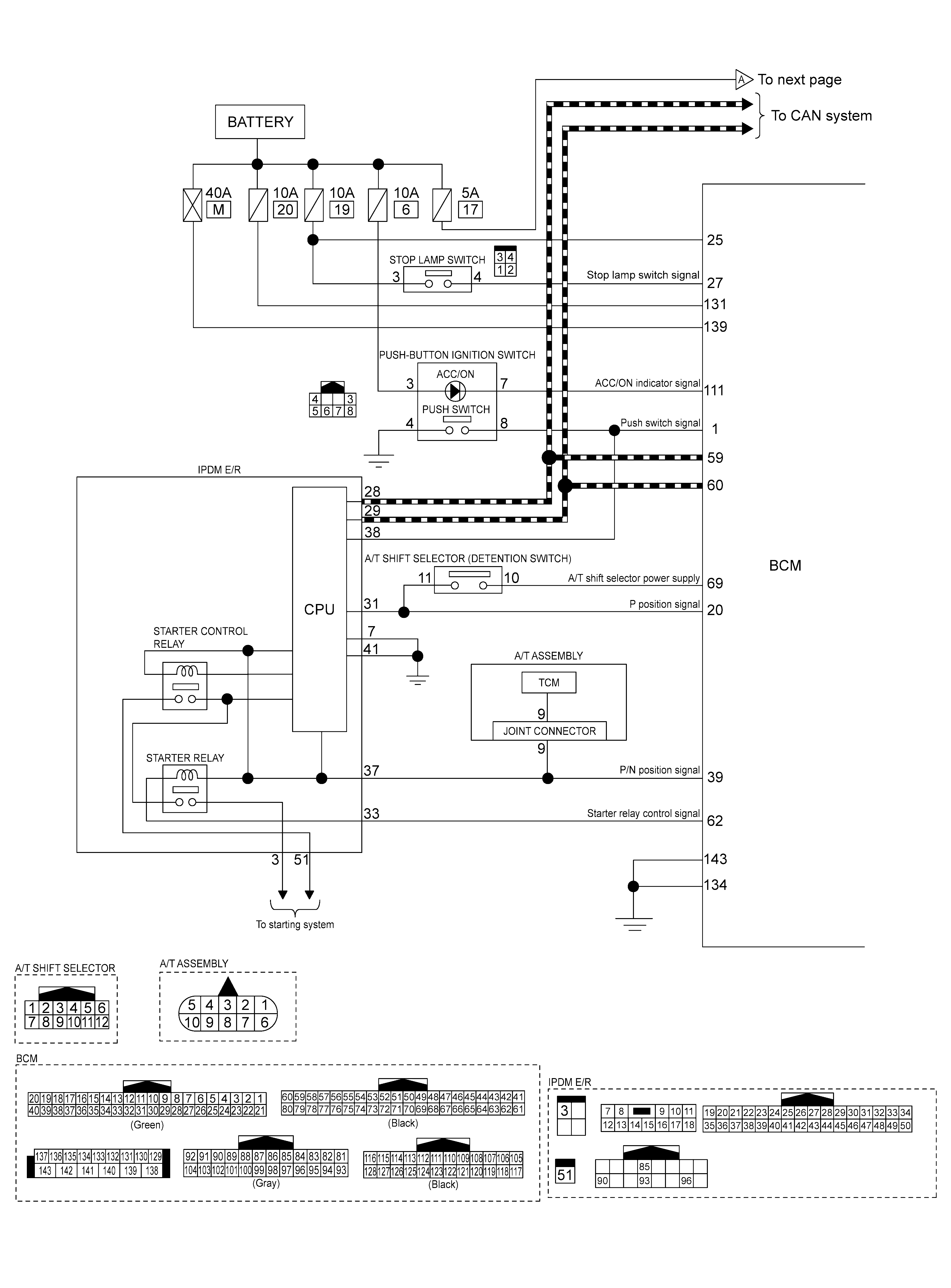

GNSJMKIB7503GB-503Courtesy of NISSAN NORTH AMERICA, INC.

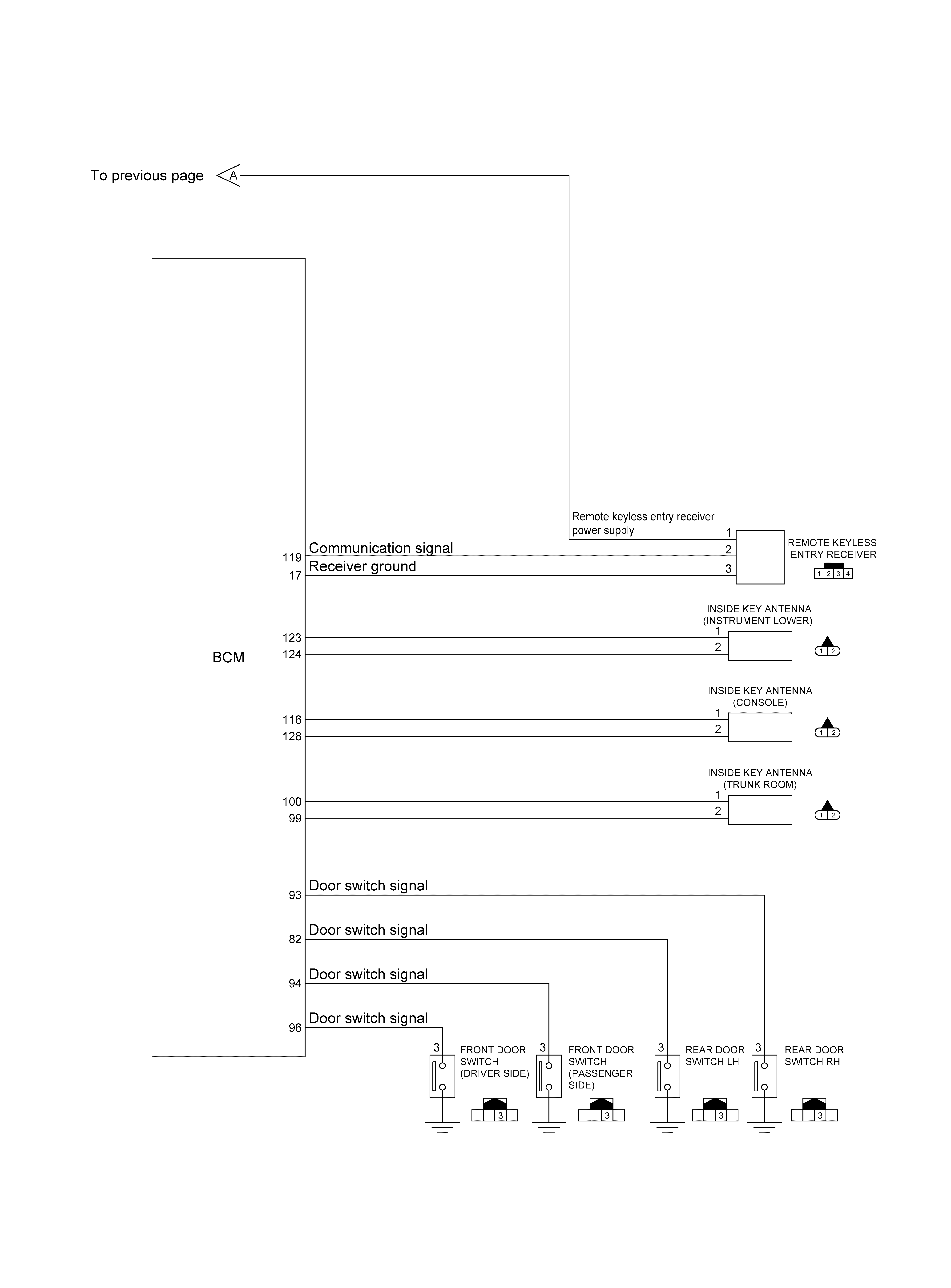

GNSJMKIB7497GB-497Courtesy of NISSAN NORTH AMERICA, INC.
