Stop Lamp Switch Brake Pedal Position Switch
Stop lamp switch
and brake pedal position switch

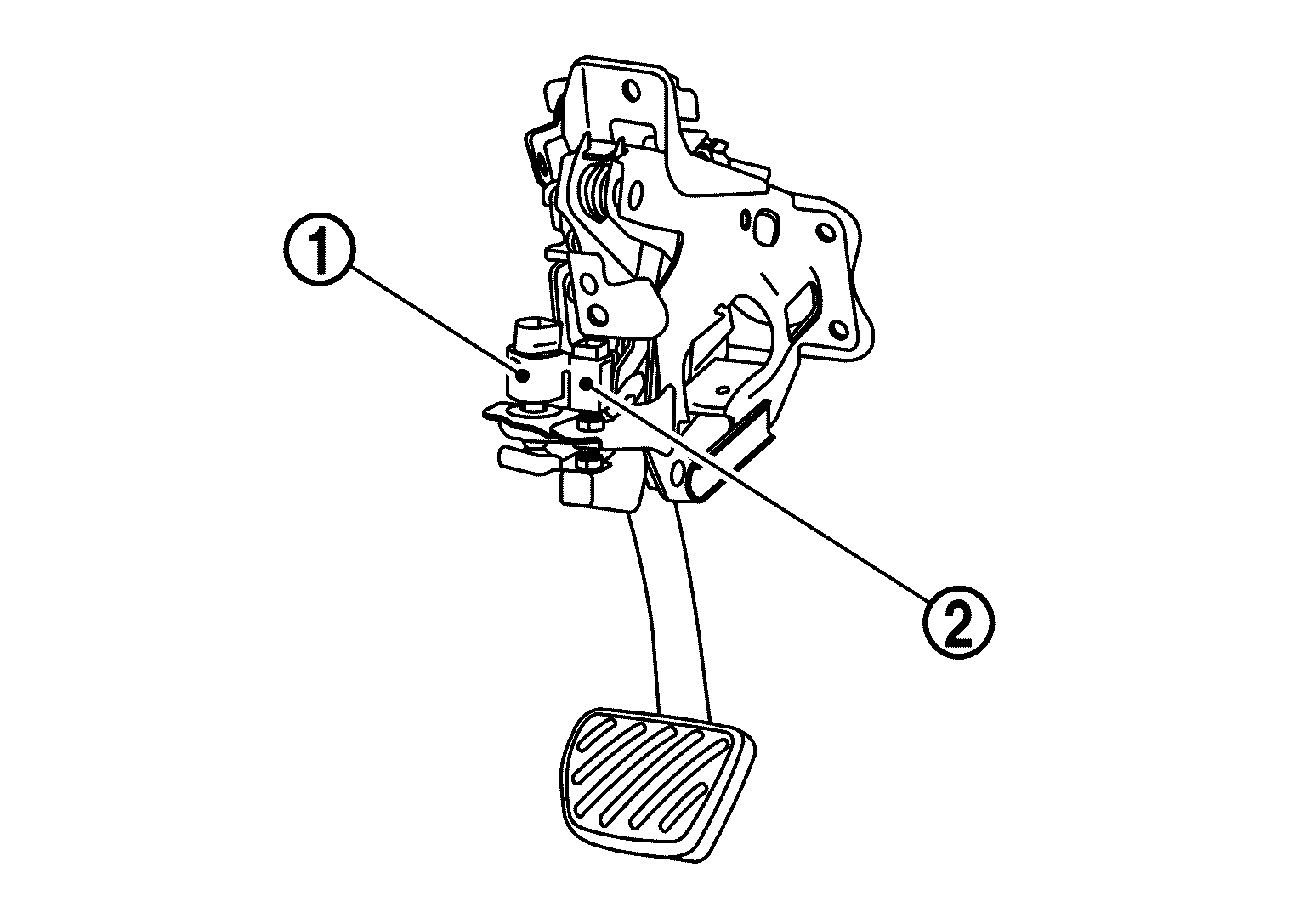

are installed to brake pedal bracket.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
EMCM detects the state of the brake pedal according to those two types of input (ON/OFF signal).
|
Brake pedal
|
Brake pedal position switch
|
Stop lamp switch
|
|
Released
|
ON
|
OFF
|
|
Depressed
|
OFF
|
ON
|
