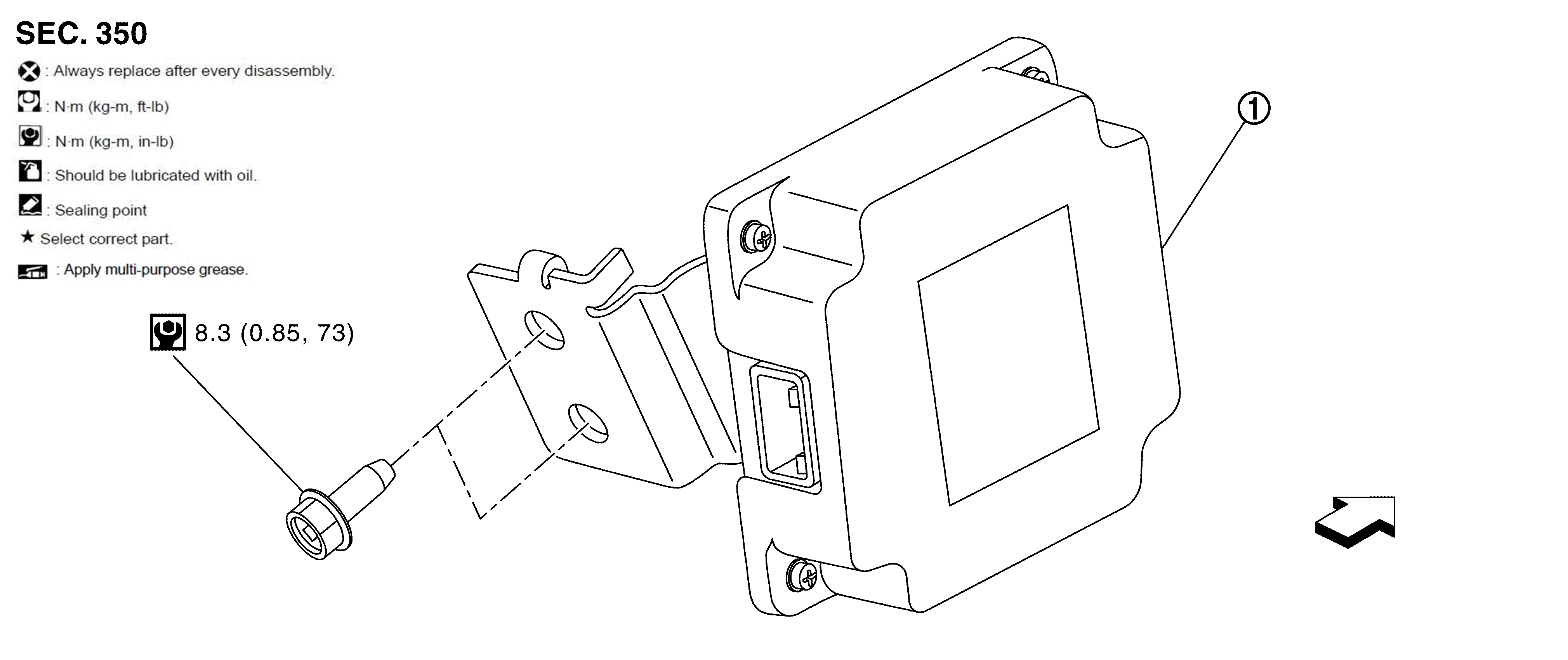

Exploded View

WARNING: This page is about a different variant/trim than selected.
GNSJSDIA4523GB-523Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

AWD control unit

SYMBOL

: Vehicle front

SYMBOL

: N.m (kg-m, in-lb)
