Exploded View

WARNING: This page is about a different variant/trim than selected.

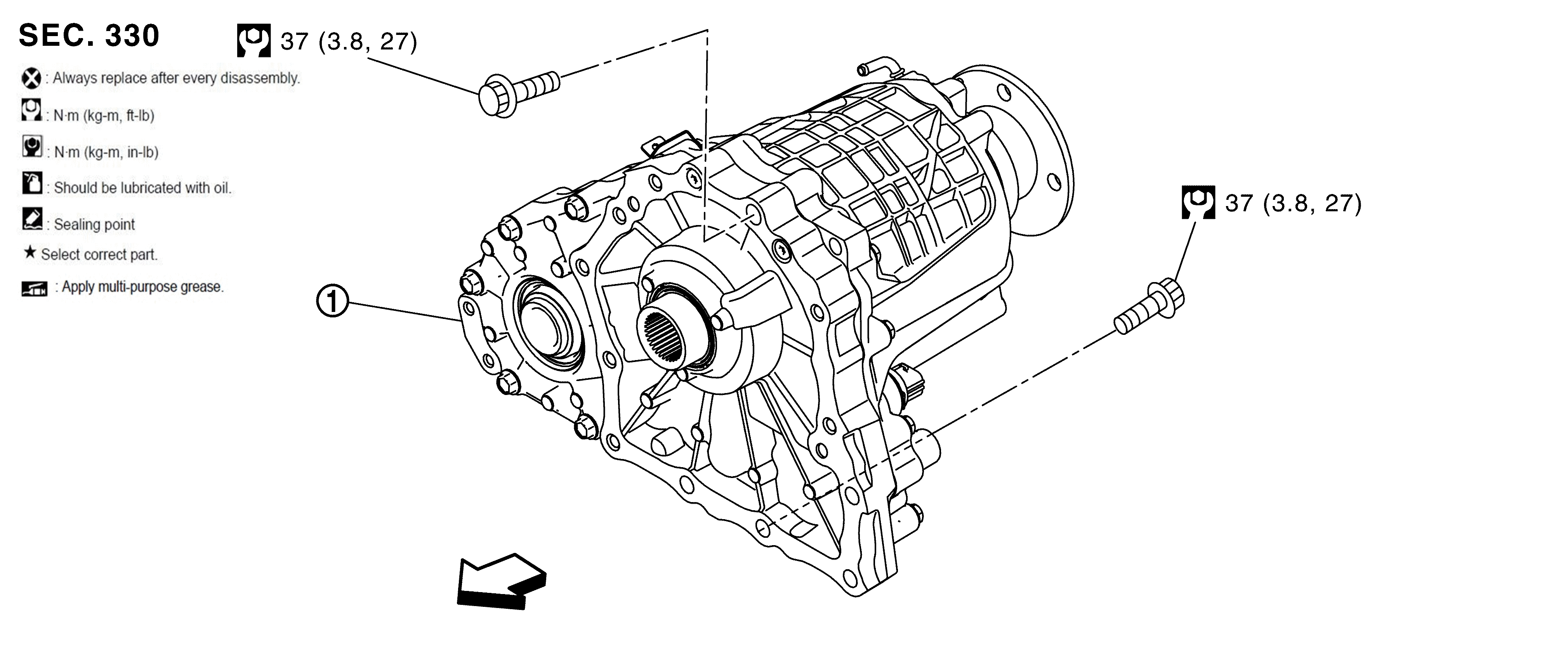

Fig 1: Transfer Assembly Replacement Components With Torque Specifications
GNSJSDIA4515GB-515Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Transfer assembly

SYMBOL : Vehicle front

SYMBOL : N.m (kg-m, ft-lb)
