Engine Control System (Introduction) (3.0L)
›
System Description
›
System
›
Engine Control System
›

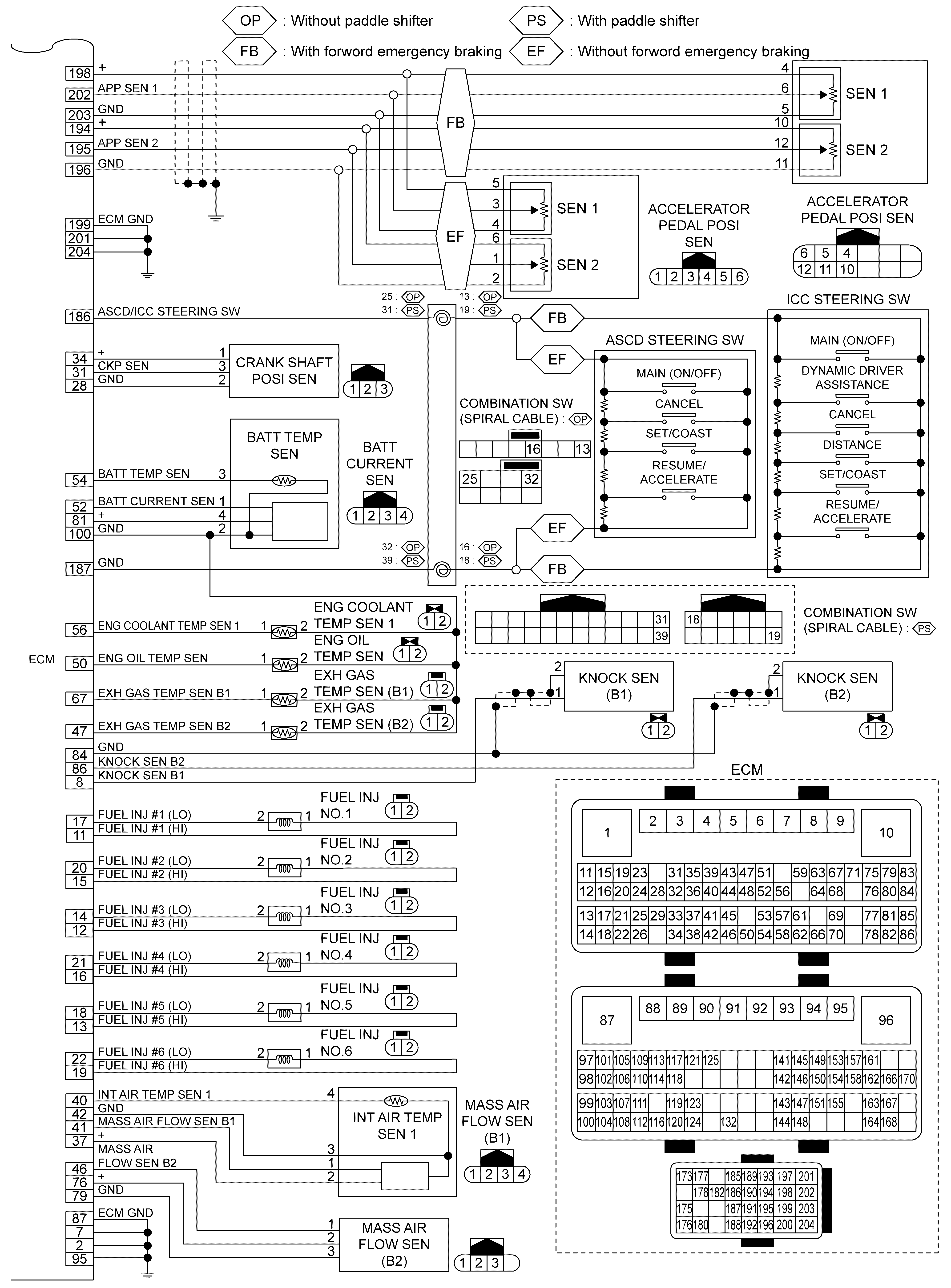

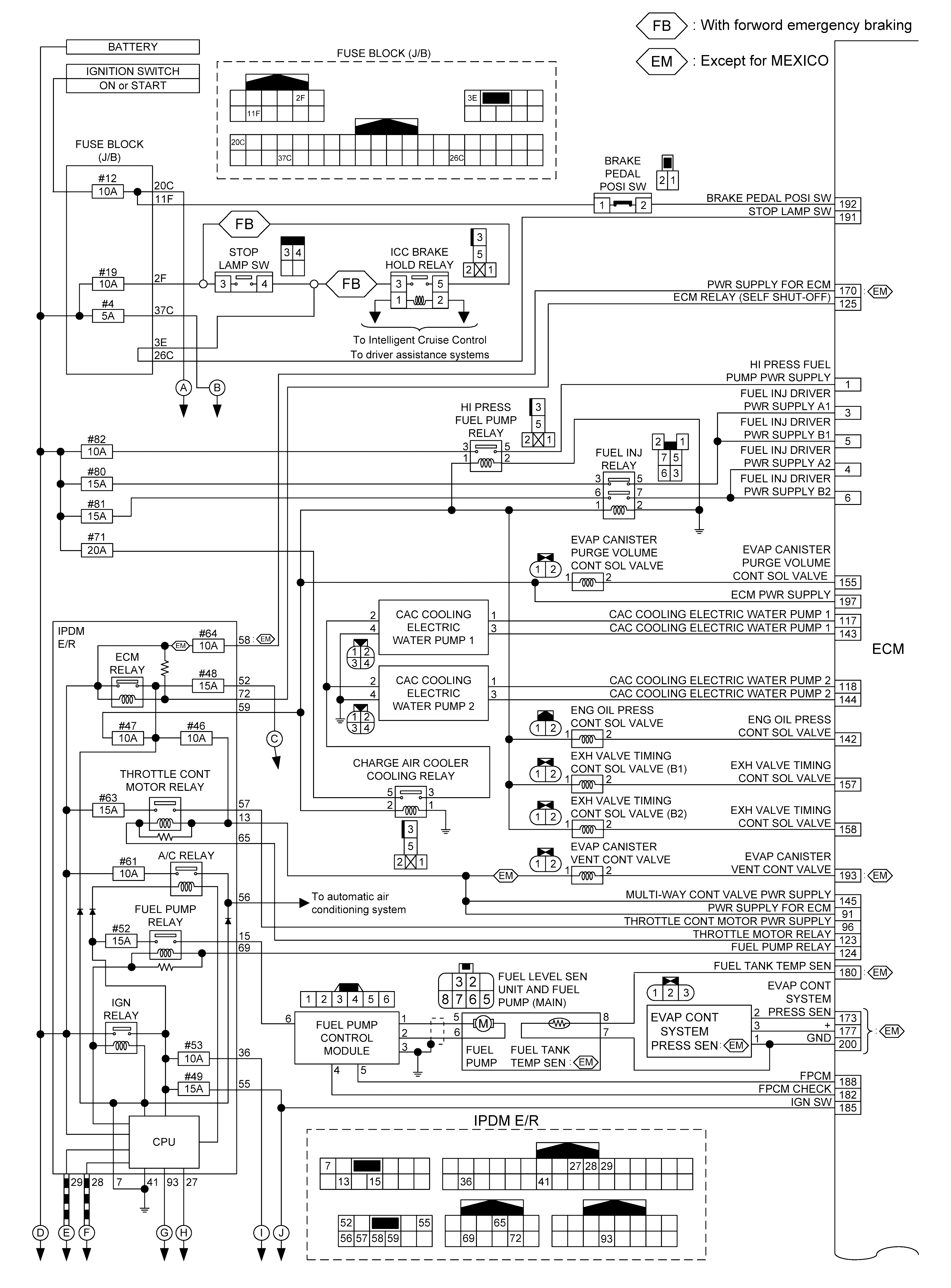

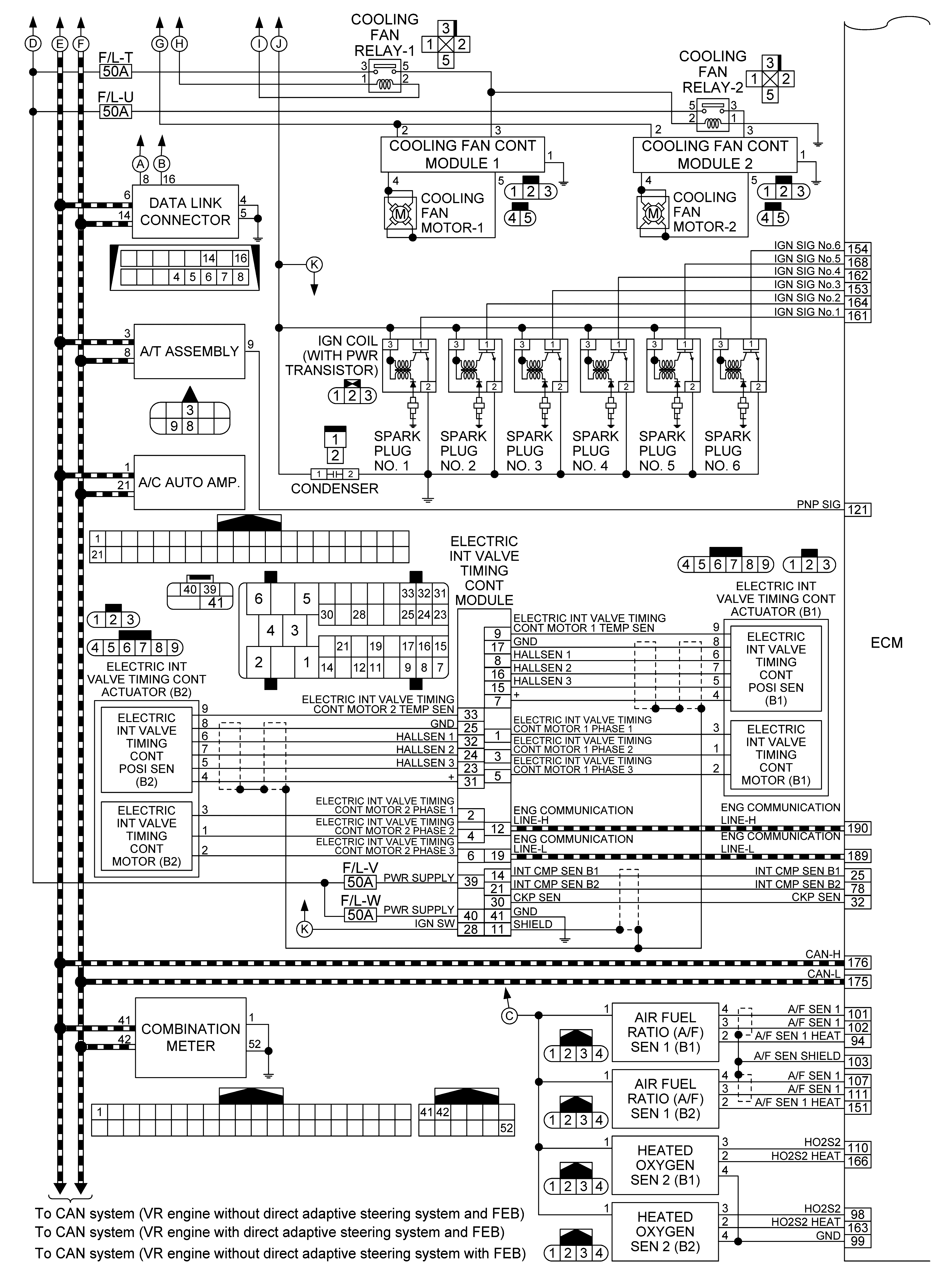

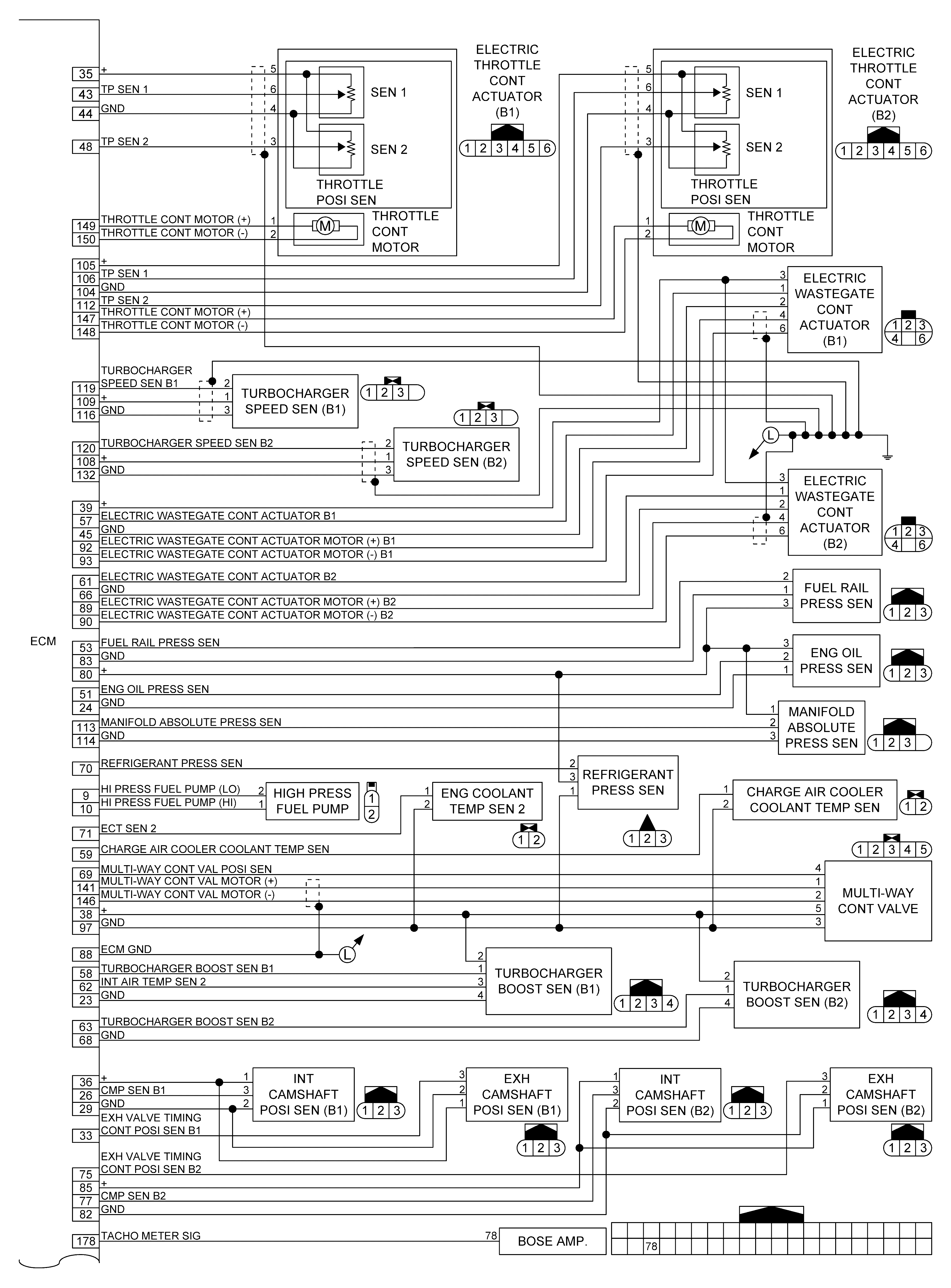

Circuit Diagram (Turbo High Pressure Model)
Circuit Diagram (Turbo High Pressure Model)
