Switch Name and Function

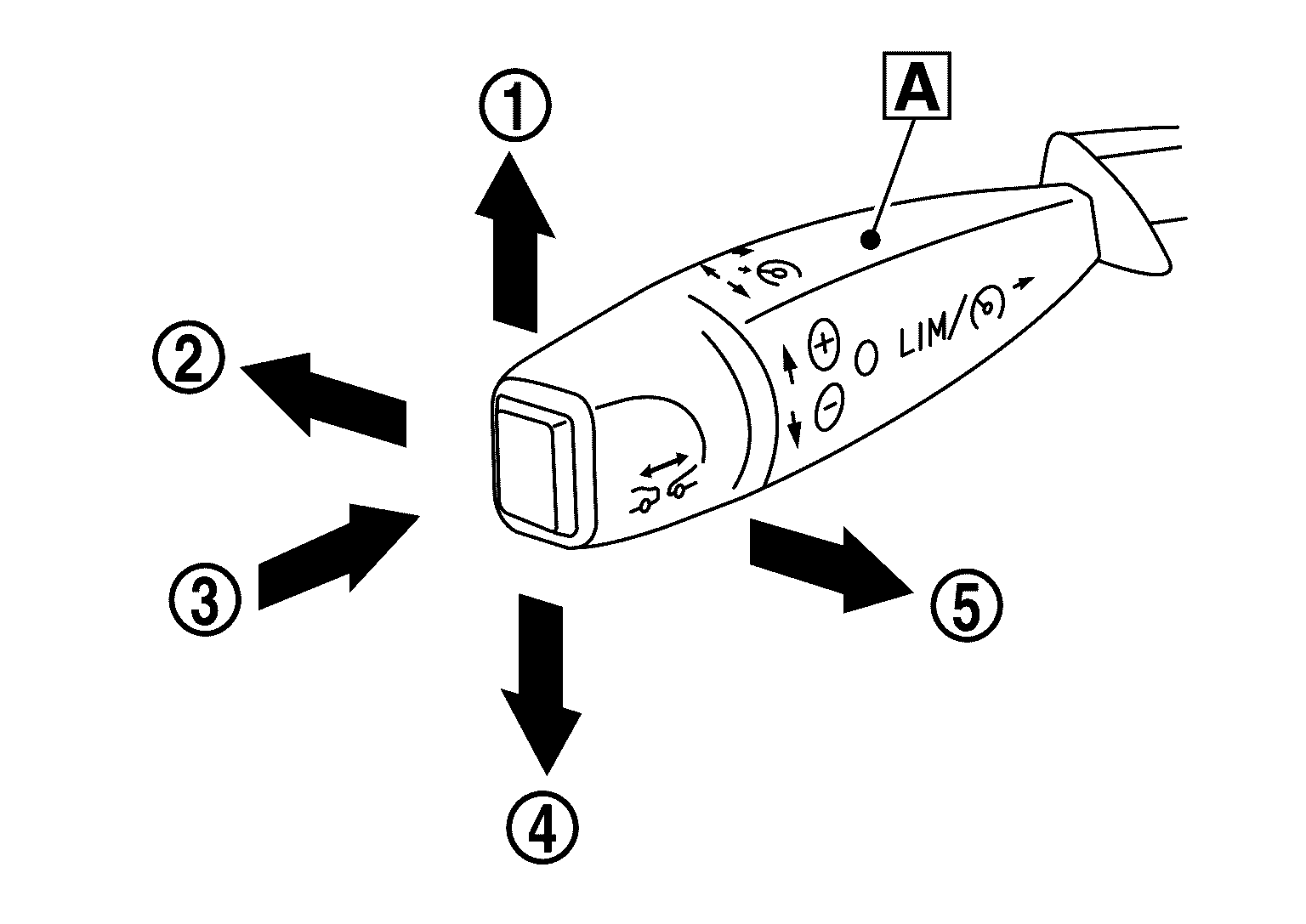

GNSJSOIA2334Z-334Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

: Cruise Control Lever

No.

Description

Function

SYMBOL

Accelerate and set switch

Store the current speed or a higher speed

SYMBOL

Switch OFF switch

Deactivate the ASCD system

SYMBOL

Speed limiter switch

Switch between cruise control and variable speed limiter

SYMBOL

Decelerate and set switch

Store the current speed or a lower speed

SYMBOL

Resume from memory switch

Store the current speed or call up the last store speed
