Exploded View

CAUTION: Always perform the ICC sensor alignment after the replacement, removal and installation of ICC sensor. Refer to Application Notice .

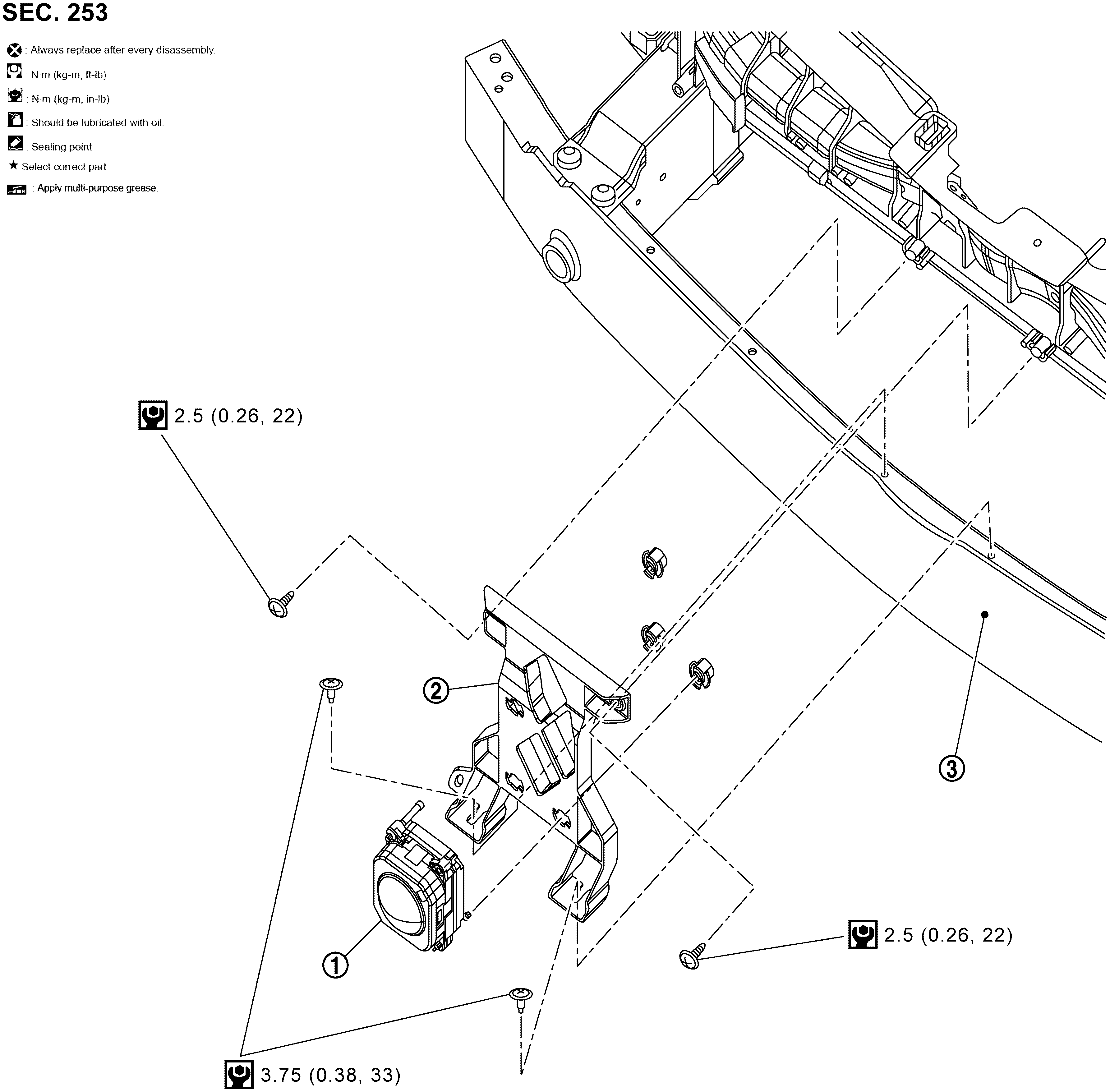

Fig 1: Exploded View Of ICC Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	ICC sensor		Bracket		Front bumper reinforcement
	: N.m (kg-m, in-lb)
