Removal and Installation: Removal

  1. Remove rear door finisher. Refer to Removal and Installation .

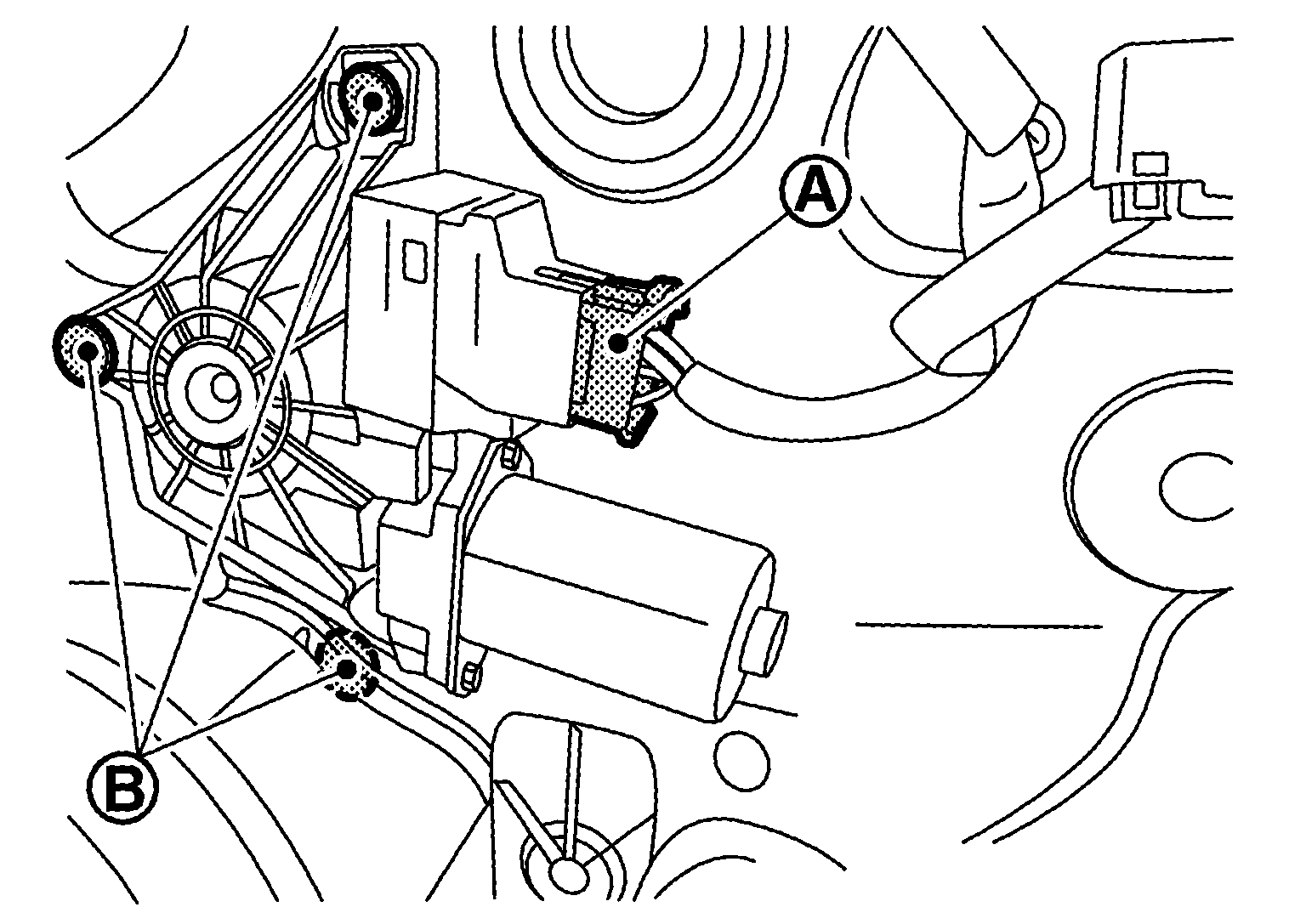

  2. Disconnect harness connector SYMBOL , and then remove fixing screws SYMBOL .
    GNSJMKIB6073Z-073Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove rear door power window motor.
