Removal and Installation: Removal

1. Remove steering wheel. Refer to Removal and Installation .
2. Remove steering column cover. Refer to Removal and Installation .

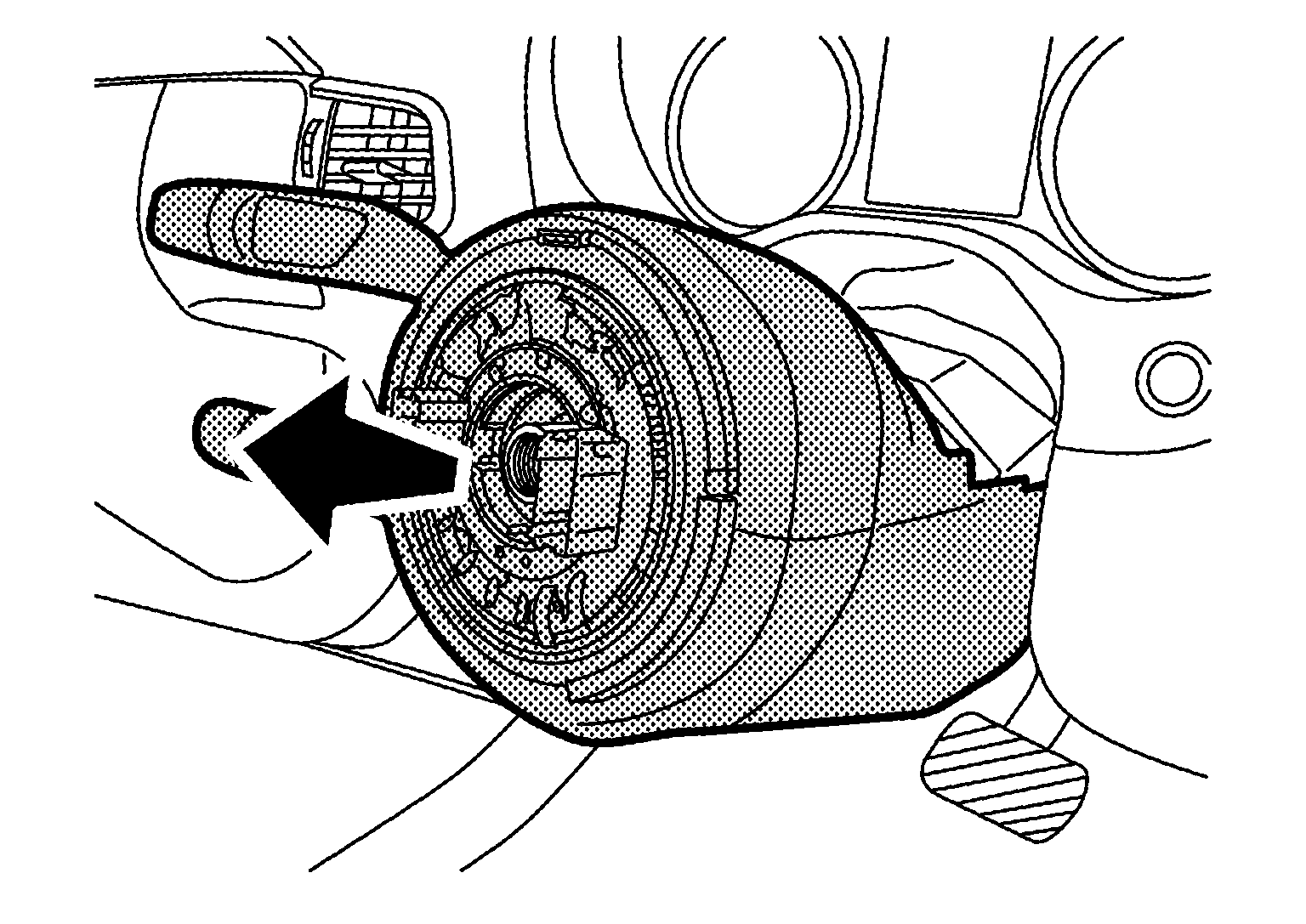

3. Pull out steering column control module.

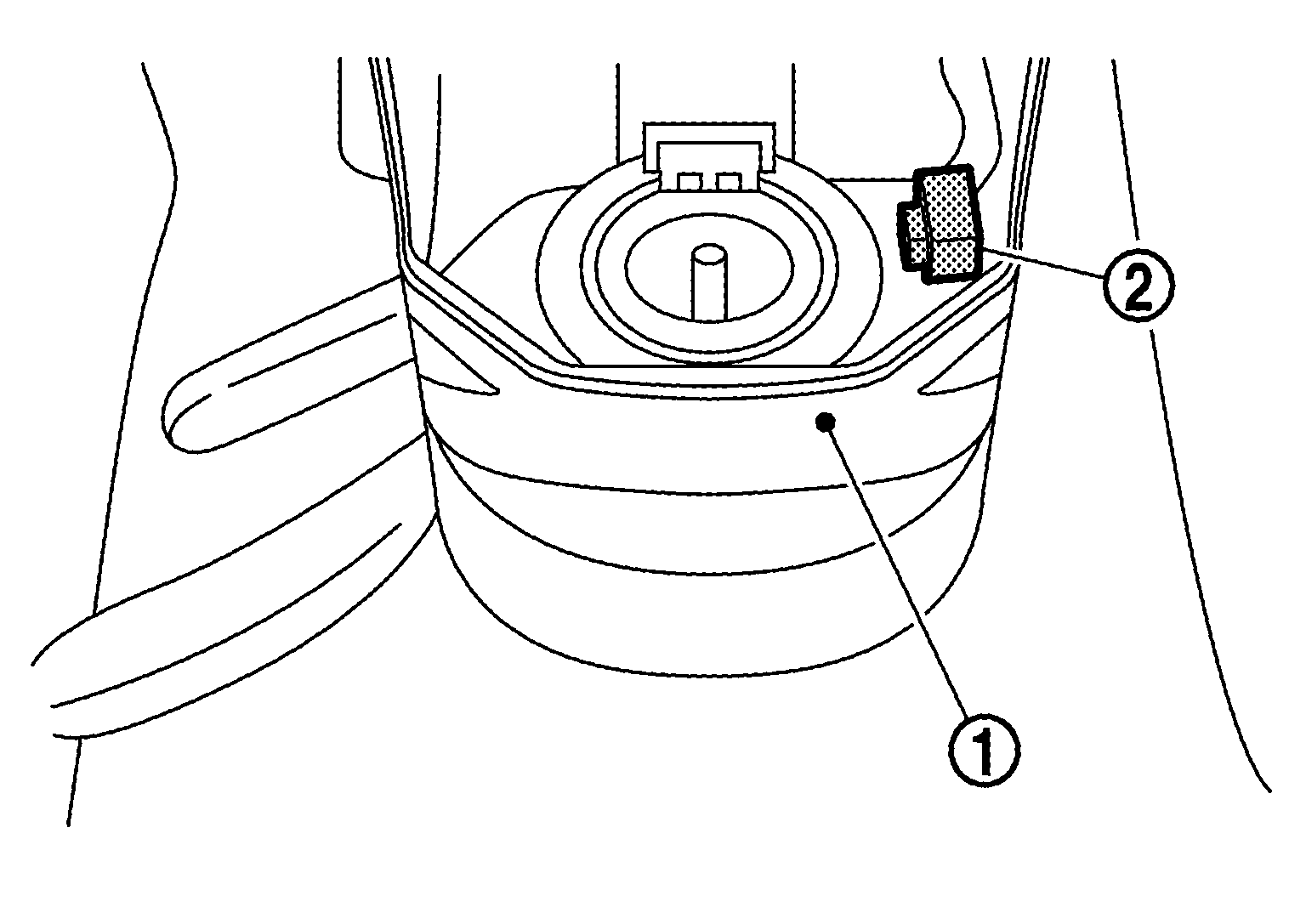

4. Disconnect harness connector from steering column control module .

   Courtesy of NISSAN NORTH AMERICA, INC.

5. Remove steering column control module.

Courtesy of NISSAN NORTH AMERICA, INC.
