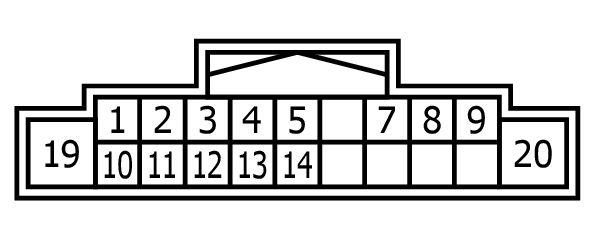

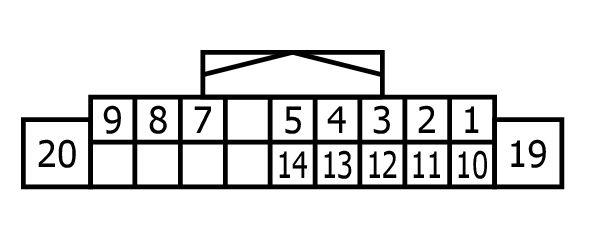

Av Control Unit Connector End View (M9)
Connector Types: TH18FW-CS2
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | SHIELD | SHIELD |
| 2 | L | SOUND SIGNAL FRONT LH (+) [Without BOSE audio] |
| 2 | L | SOUND SIGNAL LH (+) [With BOSE audio] |
| 3 | P | SOUND SIGNAL LH (-) [With BOSE audio] |
| 3 | W | SOUND SIGNAL FRONT LH (-) [Without BOSE audio] |
| 4 | LG | SOUND SIGNAL REAR LH (+) |
| 5 | SB | SOUND SIGNAL REAR LH (-) |
| 7 | L | ACC POWER SUPPLY |
| 8 | W | DISK EJECT SIGNAL |
| 9 | G | DISK EJECT SIGNAL GROUND |
| 10 | SHIELD | SHIELD |
| 11 | BR | SOUND SIGNAL FRONT RH (+) [Without BOSE audio] |
| 11 | W | SOUND SIGNAL RH (+) [With BOSE audio] |
| 12 | P | SOUND SIGNAL RH (-) [With BOSE audio] |
| 12 | Y | SOUND SIGNAL FRONT RH (-) [Without BOSE audio] |
| 13 | L | SOUND SIGNAL REAR RH (+) |
| 14 | P | SOUND SIGNAL REAR RH (-) |
| 19 | Y | BATTERY POWER SUPPLY |
| 20 | B | GROUND |
