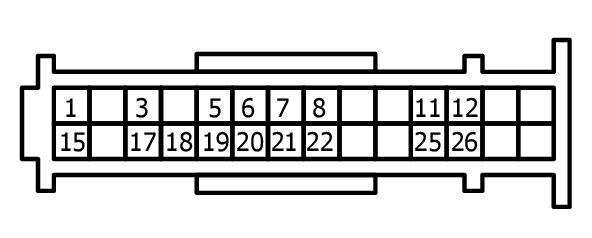

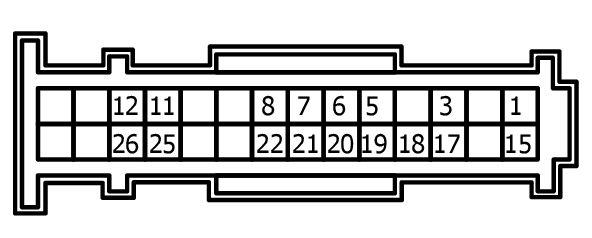

Intelligent Key Unit Connector End View (M149)
Connector Types: MB_A0045407281
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | B | GND |
| 3 | BR | BODY CAN 1-L |
| 5 | L | REAR INSIDE KEY ANTENNA SIG 1 |
| 6 | Y | OUTSIDE KEY ANTENNA RH SIG 1 |
| 7 | G | OUTSIDE KEY ANTENNA LH SIG 1 |
| 8 | W | FRONT INSIDE KEY ANTENNA SIG 1 |
| 11 | GR | FR I-KEY DOOR HANDLE RH GND |
| 12 | B | FR I-KEY DOOR HANDLE LH GND |
| 15 | R | BATTERY POWER SUPPLY |
| 17 | R | BODY CAN 1-H |
| 18 | B | KEYLESS COMMUNICATION SIG |
| 19 | R | REAR INSIDE KEY ANTENNA SIG 2 |
| 20 | O | OUTSIDE KEY ANTENNA RH SIG 2 |
| 21 | V | OUTSIDE KEY ANTENNA LH SIG 2 |
| 22 | B | FRONT INSIDE KEY ANTENNA SIG 2 |
| 25 | V | FR I-KEY DOOR HANDLE RH SIG |
| 26 | P | FR I-KEY DOOR HANDLE LH SIG |
