Timing Chart

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

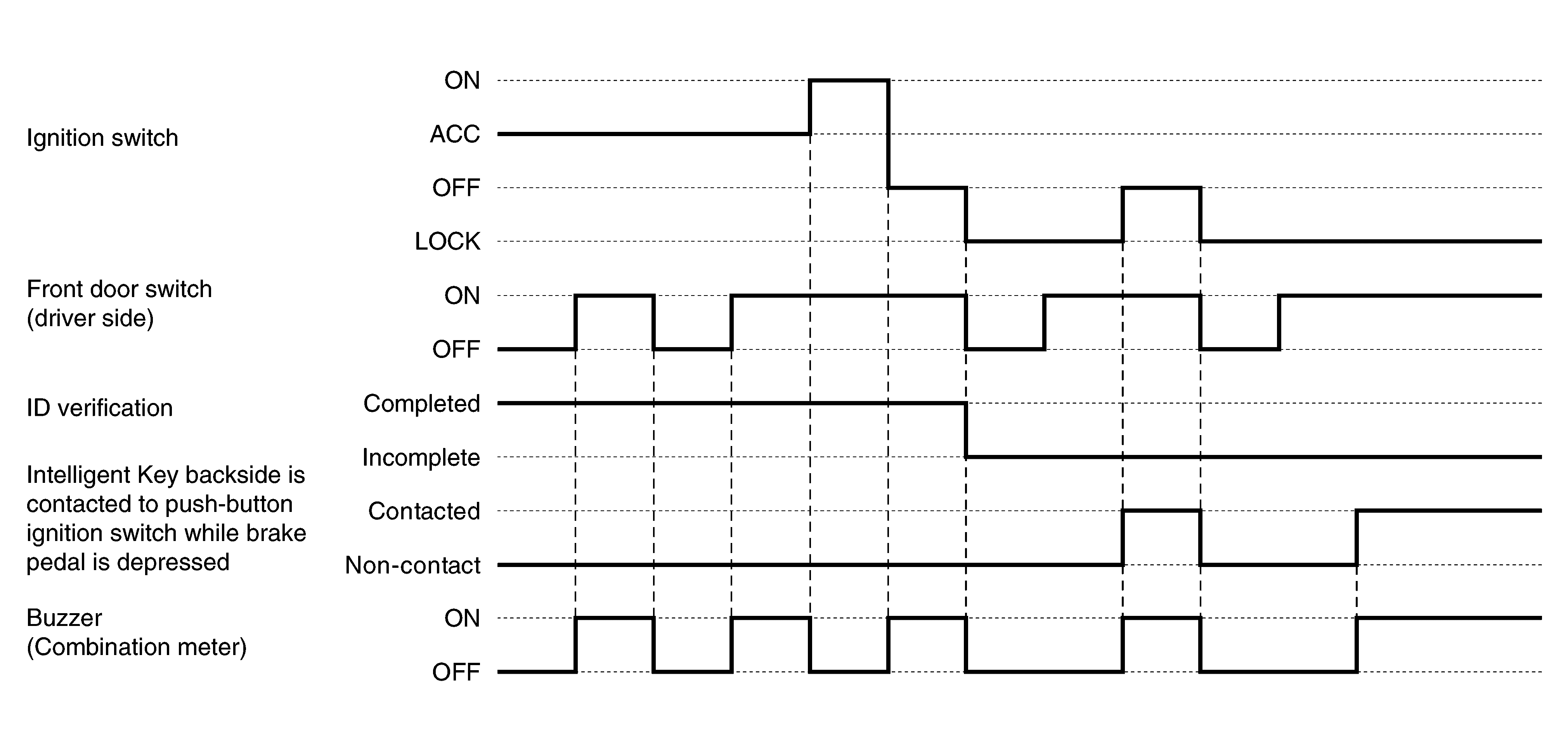

For internal

Courtesy of NISSAN NORTH AMERICA, INC.

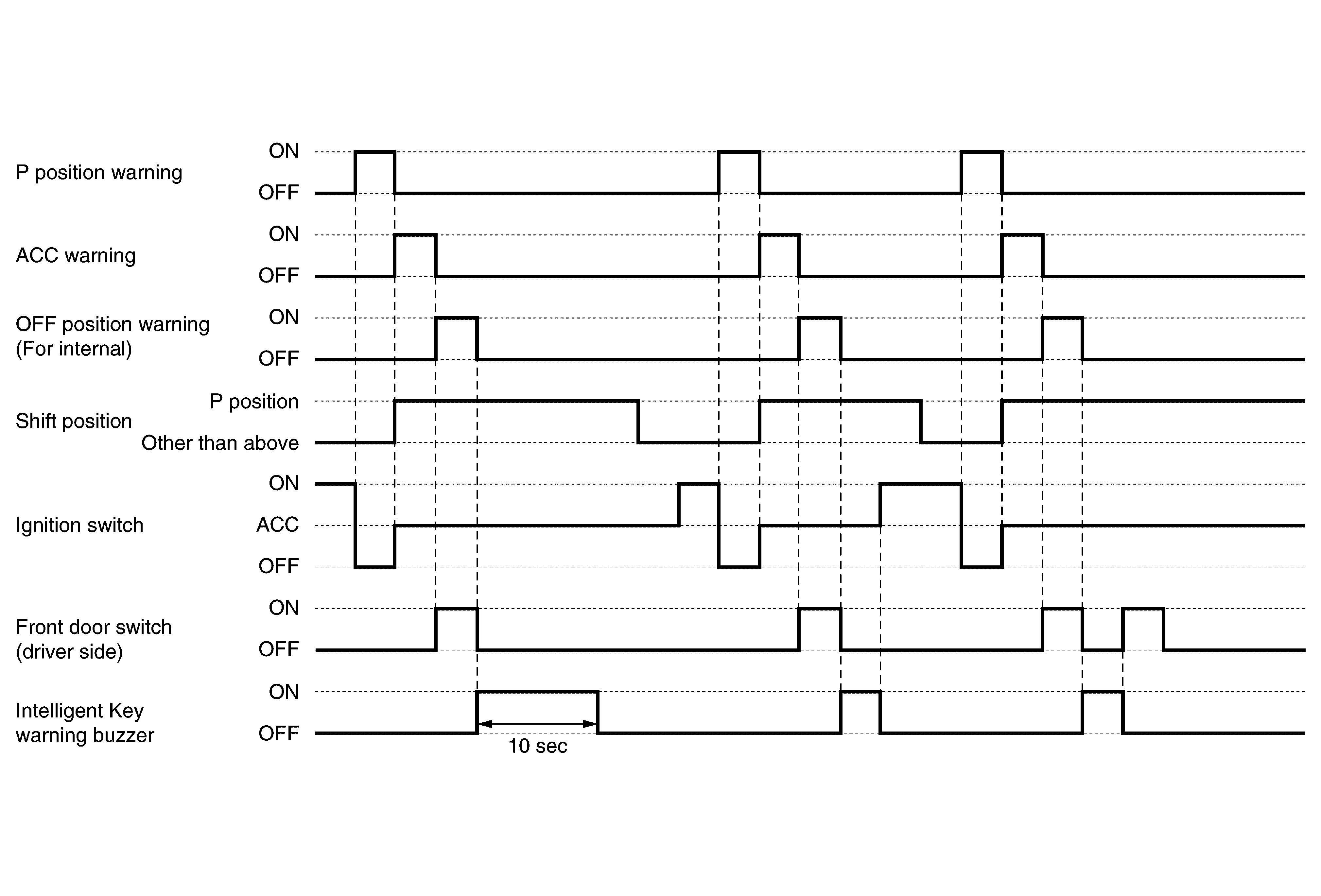

For external

Courtesy of NISSAN NORTH AMERICA, INC.
