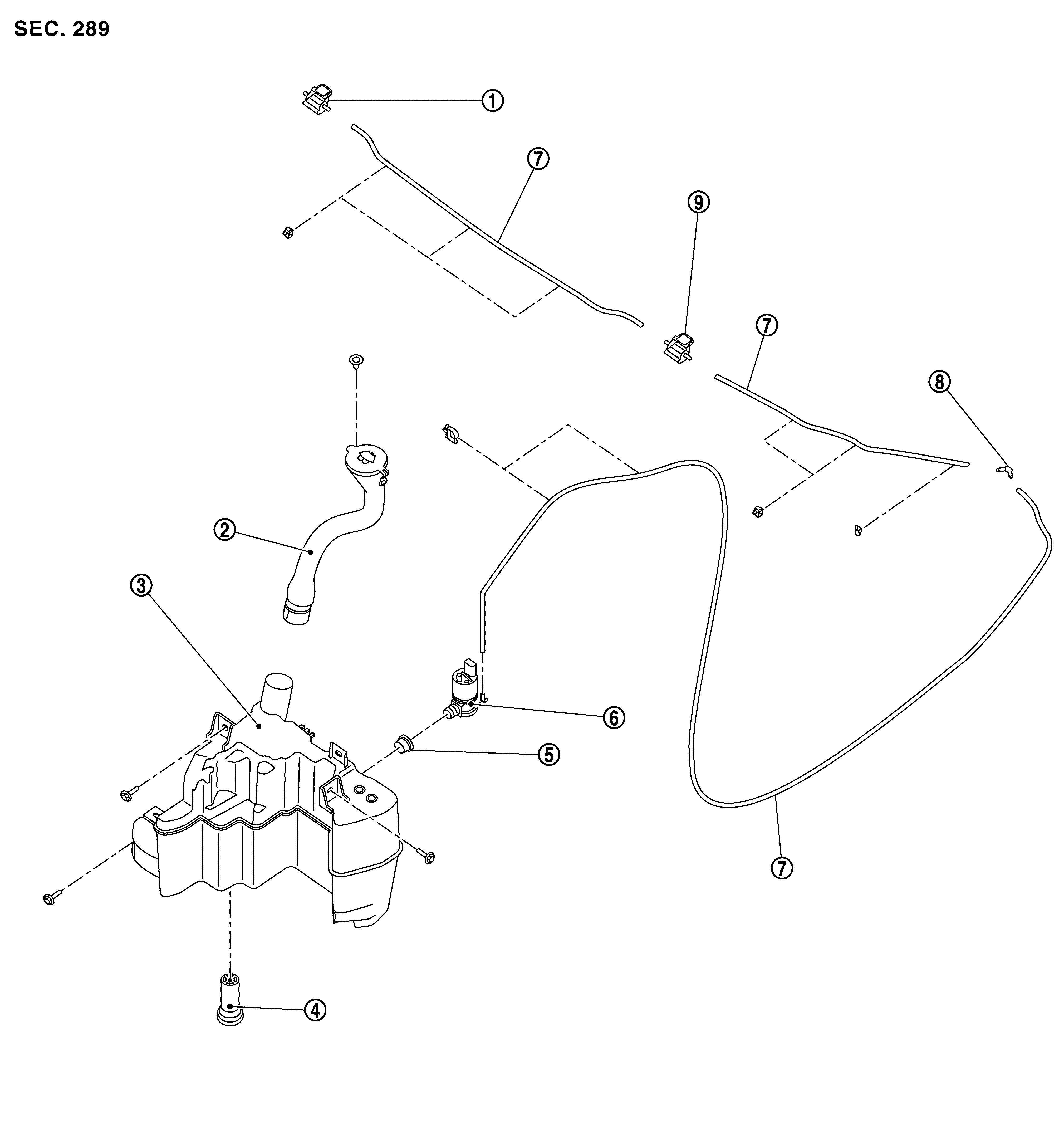

Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Washer nozzle RH	Washer tank inlet	Washer tank
Washer level switch	Packing	Washer pump
Washer tube	L-joint	Washer nozzle LH
