Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

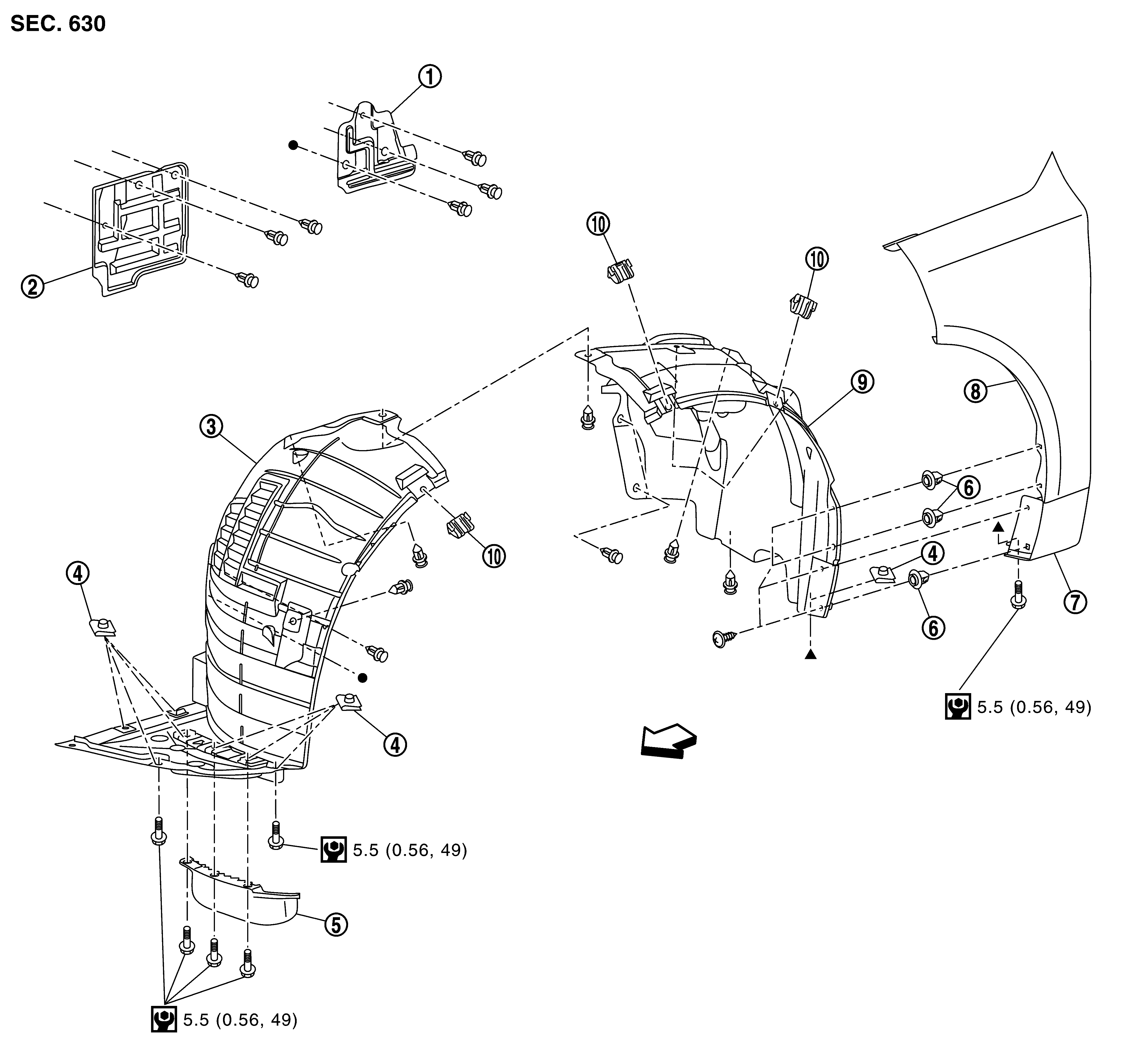

Fig 1: Fender Protector Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Splash guard (2WD models)	Splash guard (AWD models)	Front fender protector front
	Spring nut	Air guide	Grommet
	Sill cover	Front fender assembly	Front fender protector rear
	Front fender clip
	: Vehicle front
	: N.m (kg-m, in-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.
