Section 57 (Brake System)
›
Removal And Installation
›
Brake Booster
›
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

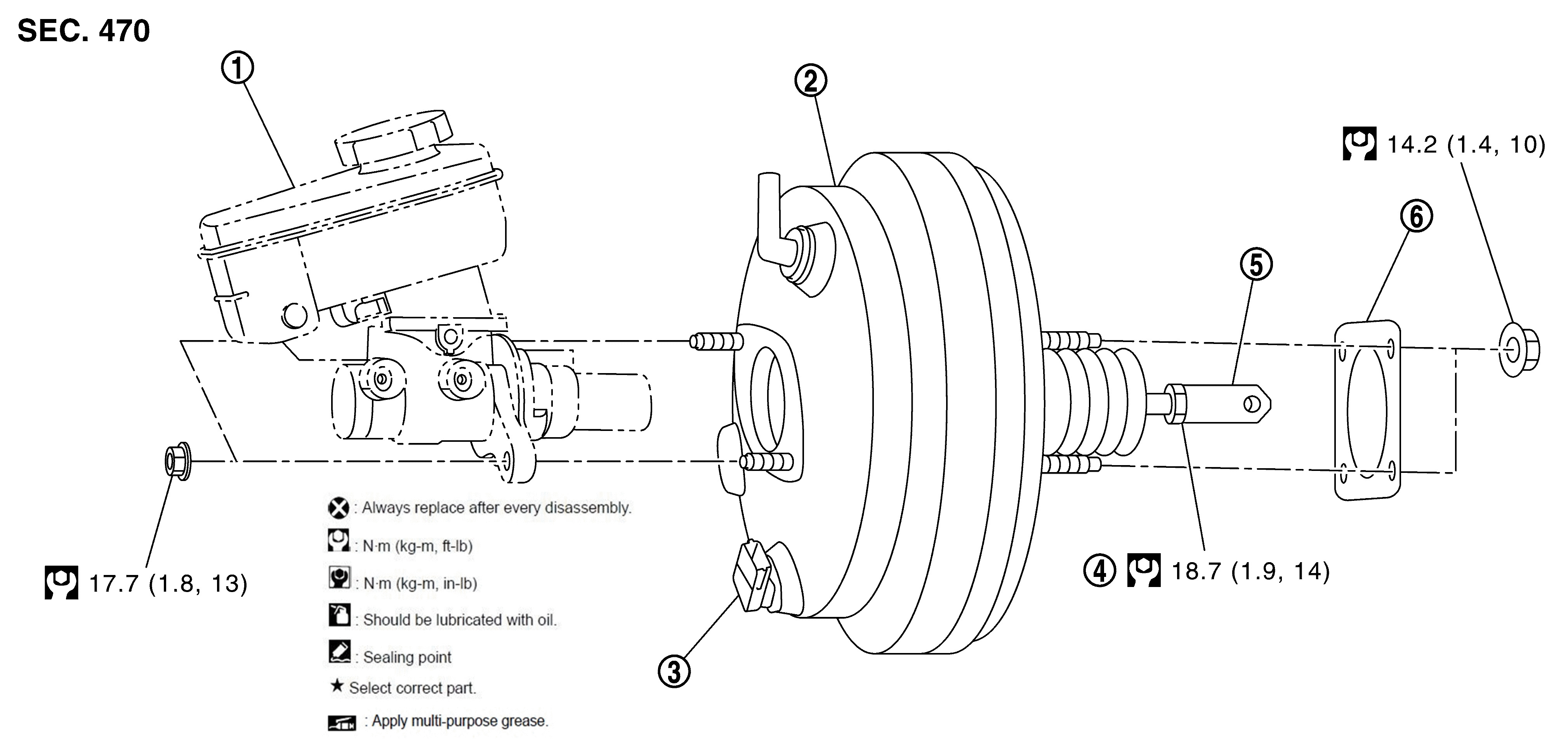

Fig 1: Brake Booster With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Master cylinder assembly
Brake booster
Vacuum sensor
Lock nut
Clevis
Gasket
: N.m (kg-m, ft-lb)
