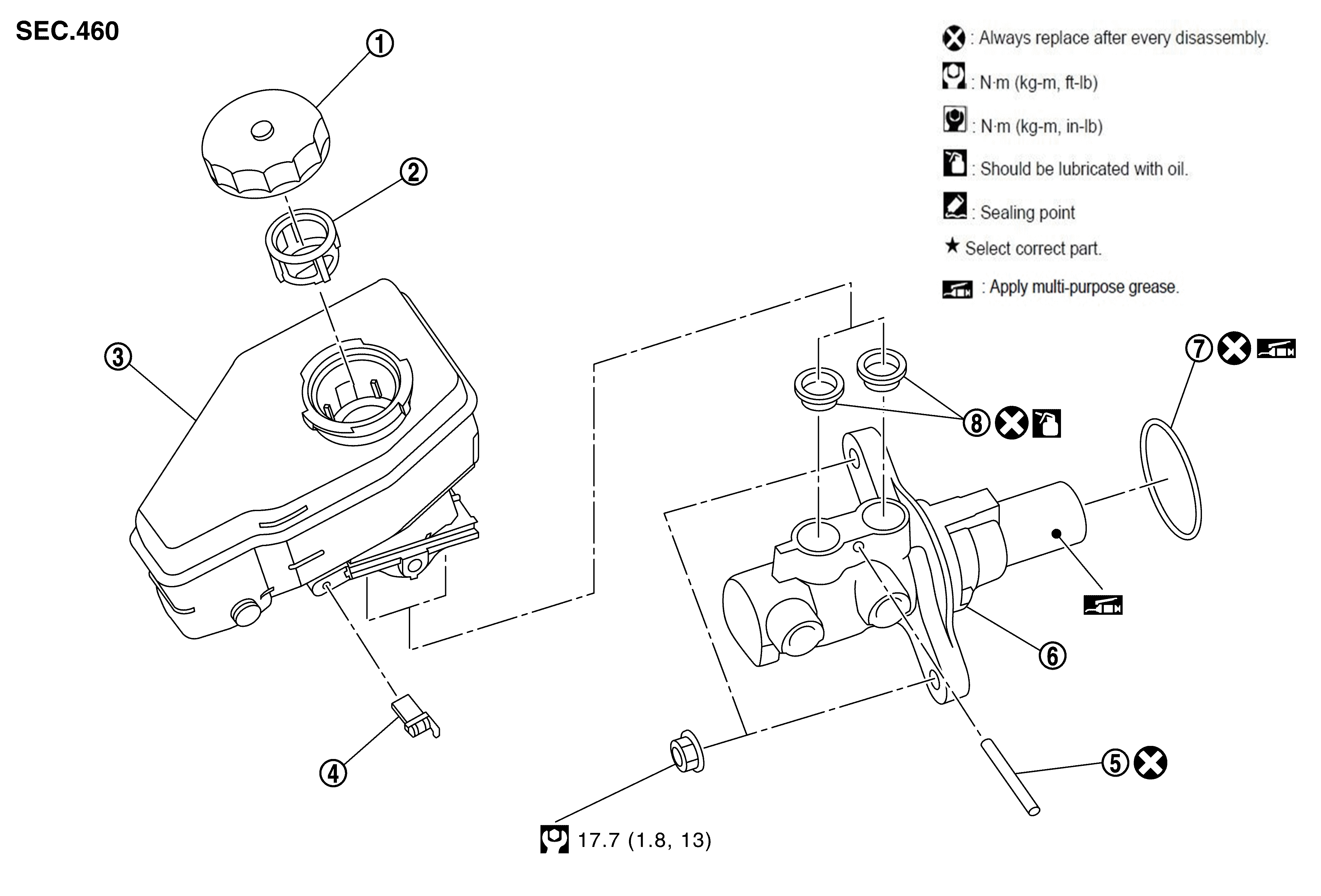

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Reservoir cap
|
|
Oil strainer
|
|
Reservoir tank
|
|
|
Brake fluid level switch connector
|
|
Pin
|
|
Cylinder body
|
|
|
O-ring
|
|
Grommet
|
|
: Apply silicone grease.
|
|
: Apply brake fluid.
|
|
: N.m (kg-m, ft-lb)
|
|
: Always replace after every disassembly.
|
